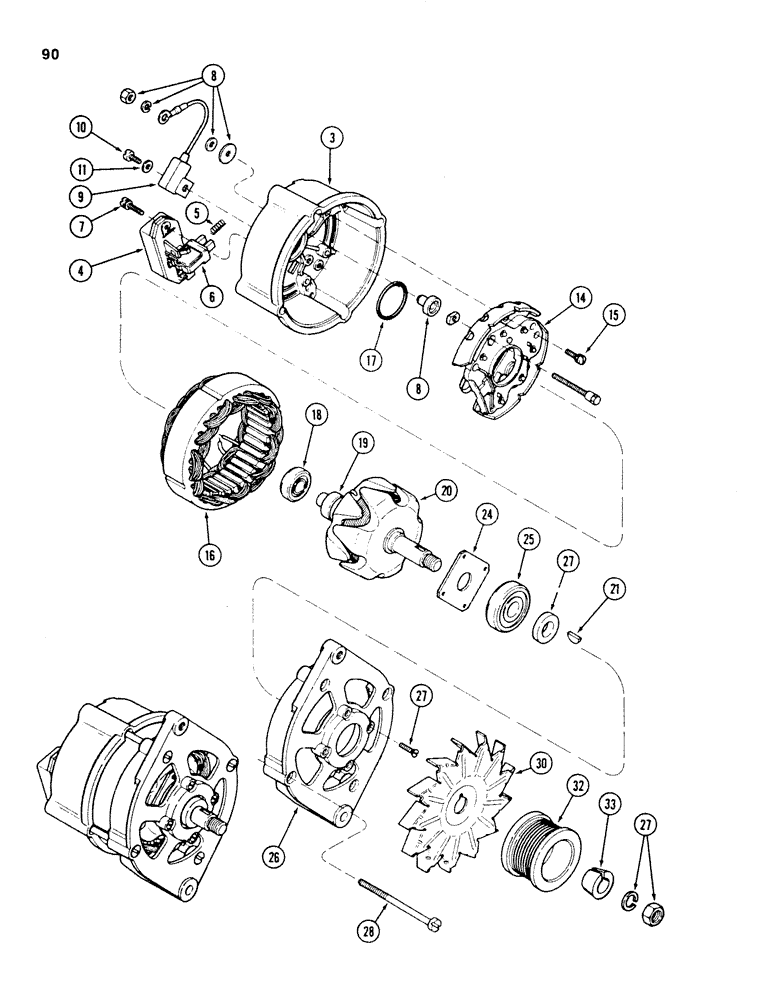

Запчасти Case 580E (090) - BOSCH ALTERNATOR (04) - ELECTRICAL SYSTEMS

A186132

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, 65 ampere, JI Case Installed, Order A186125, 221425RI and A77414

1шт.

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, service, 12 volt, Includes: Ref. 3 - 28

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value

1шт.

3

A186187

HOUSING

HOUSING collector ring end

1шт.

4

A186189

REGULATOR

REGULATOR voltage, Includes: Ref. 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING compression

2шт.

6

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY, alternator

1шт.

7

A186194

SCREW,M4 x 18mm

SCREW, , Regulator retaining Sltd Truss Hd, M4 x 18, w/LW

2шт.

8

NSS

NOT SOLD SEPARAT

KIT, terminal, Order 3079135R1

1шт.

9

A186195

CAPACITOR

CAPACITOR alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

BOLT capacitor retaining

1шт.

11

A186196

WASHER

WASHER retaining bolt

1шт.

14

A186197

RECTIFIER

RECTIFIER BRIDGE alternator

1шт.

15

A186188

SCREW

BOLT ASSEMBLY, rectifier bridge retaining, with washer

3шт.

16

A186192

STATOR

STATOR ASSEMBLY, alternator

1шт.

17

NSS

NOT SOLD SEPARAT

O RING bearing, Order 3079386R1

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball

1шт.

19

A186185

RING

RING collector

1шт.

20

A186184

ROTOR

ROTOR ASSEMBLY, alternator

1шт.

21

NSS

NOT SOLD SEPARAT

KEY rotor, Order 3078897R1 kit

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE bearing retaining, Order 3078379R1

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, drive end

1шт.

26

A186182

HOUSING

HOUSING drive end

1шт.

27

NSS

NOT SOLD SEPARAT

KIT, rotor retaining, Order 3078897R1

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT alternator retaining

4шт.

30

221425R1

FAN

FAN alternator

1шт.

A77414

KIT

KIT, alternator pulley, Includes: Ref. 32 - 33

1шт.

32

NSS

NOT SOLD SEPARAT

PULLEY drive, Order A77414, Reference No. J903586

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINER pulley, Order A77414, Reference No. J903333

1шт.
