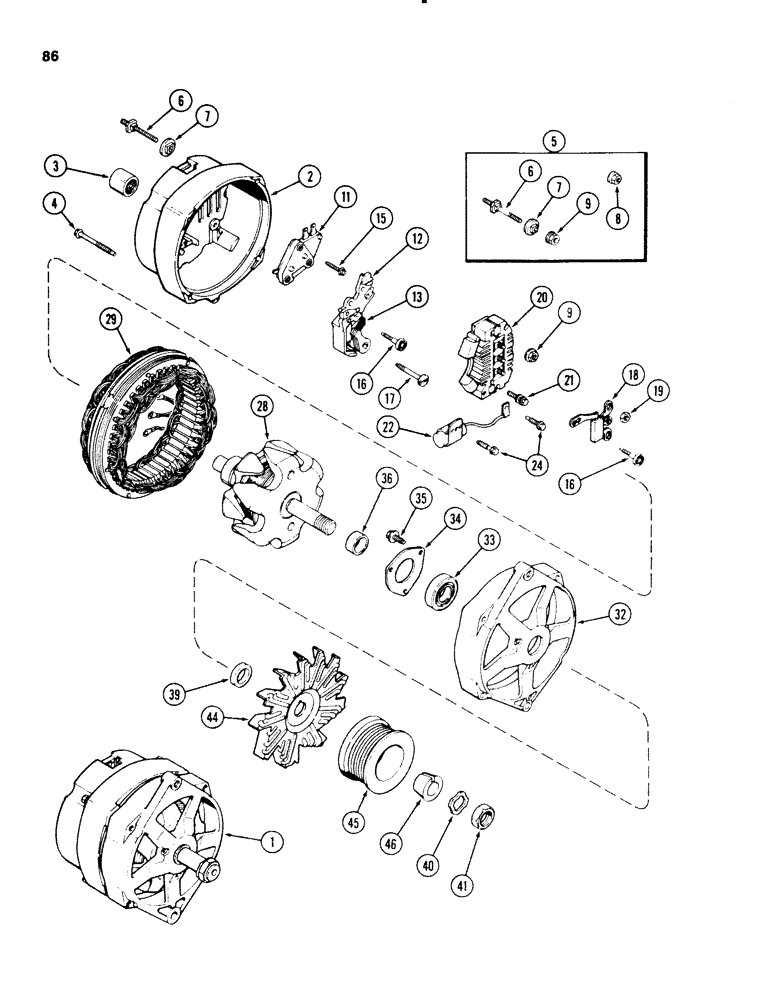

Запчасти Case 580E (086) - D121831 ALTERNATOR (04) - ELECTRICAL SYSTEMS

D121831

ALTERNATOR ASSEMBLY, 42 ampere, Delco Remy, J I Case Installed

1шт.

.

Order A46932, A43384, J903586 and J903333

1шт.

1

A46932

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, 63 ampere alternator, Includes: Ref. 2 - 41

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

2

A47595

FRAME

FRAME ASSEMBLY, slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT hex, No. 10 - 24 x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

KIT, terminal, battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY, terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY, terminal

1шт.

11

A45213

REGULATOR

REGULATOR voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY, brush, Includes: Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

1шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW brush holder, retaining

1шт.

18

A48339

DIODE

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, #8-32

3шт.

20

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket

2шт.

28

A49495

ROTOR

ROTOR ASSEMBLY, alternator

1шт.

29

A49388

STATOR

STATOR ASSEMBLY, alternator

1шт.

32

A49174

CAP

FRAME drive end

1шт.

33

A49389

BEARING ASSY

BEARING ball, drive end

1шт.

34

R15101

PLATE

PLATE bearing retainer

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW bearing plate retaining

3шт.

36

A48261

COLLAR

COLLAR rotor shaft, inner

1шт.

39

A45613

COLLAR

COLLAR rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A43384

FAN

FAN alternator ventilating

1шт.

45

J903586

GROOVED PULLEY

PULLEY drive

1шт.

46

J903333

RETAINER

RETAINER pulley

1шт.
