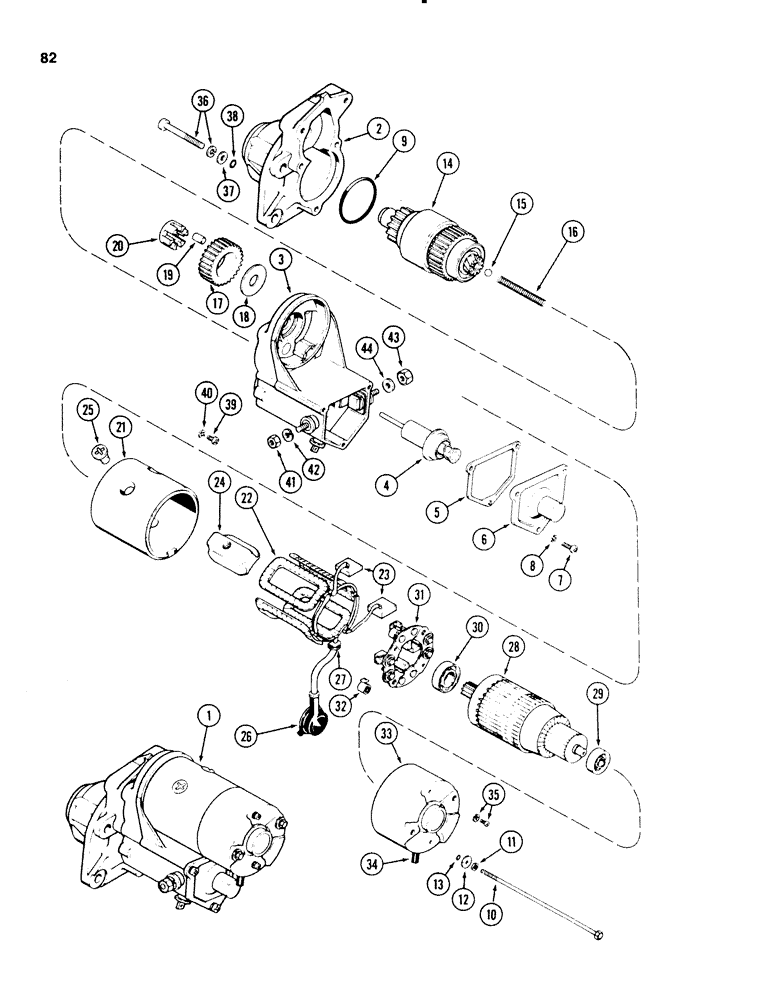

Запчасти Case 580E (082) - A170746 STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY, new, Nippondenso No. 5-128000-395, Includes: Ref. 2 - 8

1шт.

1

AR170746

STARTING MOTOR

Starter Assembly, engine, Remanufactured

1шт.

1

AC170746

CORE-STARTER

Return Part Number use this number when returning starter for credit

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

HOUSING drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY, magnetic

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O RING, Serial Range: switch-housing

1шт.

A47230

BOLT

BOLT ASSEMBLY, through, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT through

1шт.

11

892-1106

LOCK WASHER,M6

LOCK WASHER, (1/4") M6

1шт.

12

195-516

WASHER,#12

WASHER flat, 1/4 x 9/16 x 1/16 inch (6 x 14 x 2 mm)

1шт.

13

A47127

O-RING

O RING bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY, drive

1шт.

15

211-10

BALL

BALL thrust, 3/8 inch diameter, steel (10 mm)

1шт.

16

A47232

SPRING

SPRING clutch drive, 2-13/16 inch free length (71 mm)

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

WASHER thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER idler pinion bearing

6шт.

20

A47236

RETAINER

RETAINER roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY, with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE lock

1шт.

A170746

STARTING MOTOR

STARTER ASSEMBLY, engine, Includes: Ref. 28 - 44

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY, Includes: Ref. 29 - 30

1шт.

29

A47248

BALL BEARING

BEARING commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY, brush, Includes 2 brushes, Includes: Ref. 32

1шт.

32

A47249

SPRING

SPRING brush tension

4шт.

33

A47237

FRAME

FRAME commutator end

1шт.

34

A47238

COVER

COVER end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY, brush, Serial Range: holder-cover

2шт.

A47243

BOLT

BOLT ASSEMBLY, commutator end cover to drive end housing, Includes: Ref. 36 - 38

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT with lockwasher

1шт.

37

195-516

WASHER,#12

WASHER flat, 1/4 x 9/16 x 1/16 inch (6 x 14 x 2 mm)

1шт.

38

A47130

O-RING

O RING bolt seal

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW No. 8 - 32 x 3/8 inch, pan head

1шт.

40

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Battery terminal Jam, 3/8"-16, G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER field coil terminal

1шт.

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

SCREW flat head slotted, 1/4 - NC x 1/2 inch

1шт.
