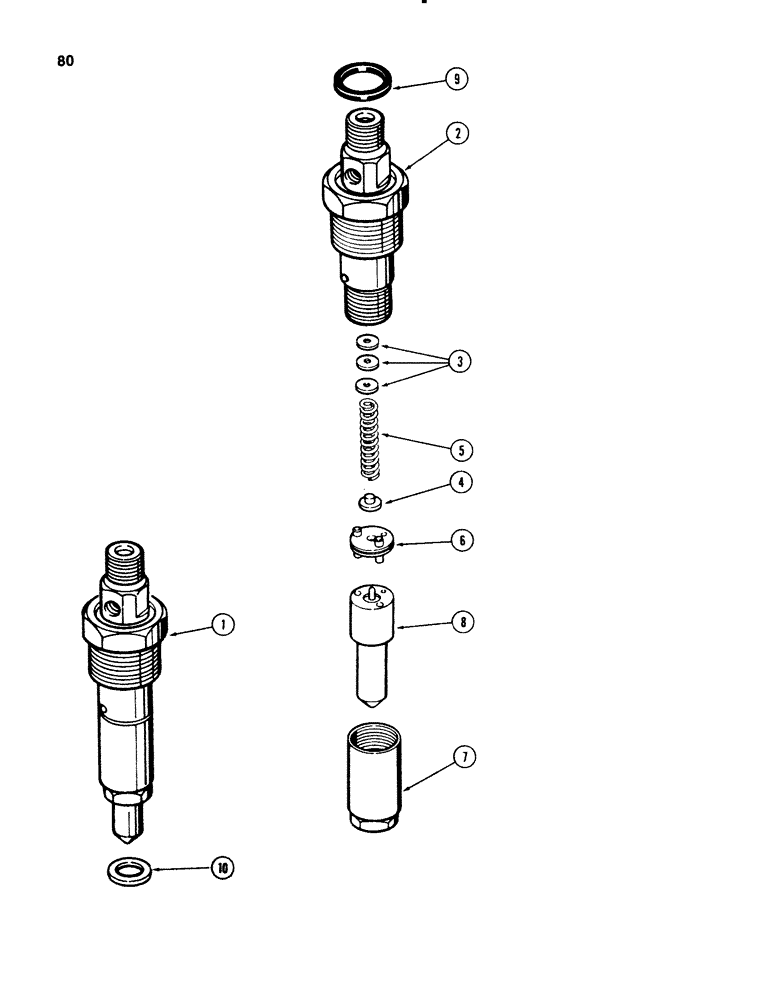

Запчасти Case 580E (080) - FUEL INJECTION NOZZLE, 4T-390 AND 4-390 DIESEL ENGINE (03) - FUEL SYSTEM

1

JR909475

INJECTOR ASSY.

NOZZLE ASSEMBLY, fuel injection, Remanufactured, North America only

4шт.

Ref #1 J909475 fuel injection nozzle assy For

1шт.

repairs use A77553 kit, A77553 kit contains a 9mm injector. If a 7mm or pencil injector is req'd, use part nbr J919331.

1шт.

1

JC909475

CORE-INJECTION PUMP

RETURN NUMBER use this number when returning injector for credit

4шт.

1

J909475

NOZZLE INJECTION

NOZZLE ASSEMBLY, fuel injection, Bosch 0 432 131 881, Includes: Ref. 3

4шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, injector, Reference No. J905146, Includes: Ref. 3

1шт.

A48186

KIT

shim, nozzle opening pressure, one kit will repair four nozzles, Includes: Ref. 3

1шт.

Ref #3 A48186 shim kit Order following primes as needed : J903380 banjo seal, J909886 injector sleeve and following shims as req'd :

1шт.

3

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit) 1.00mm Thk

1шт.

3

1806234C1

SHIM,1.04mm Thk

Nozzle (5 in kit) 1.04mm Thk

1шт.

3

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit) 1.08mm Thk

1шт.

3

1806236C1

SHIM,1.10mm Thk

Nozzle (5 in kit) 1.10mm Thk

1шт.

3

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit) 1.14mm Thk

1шт.

3

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit) 1.18mm Thk

1шт.

3

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit) 1.20mm Thk

1шт.

3

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit) 1.24mm Thk

1шт.

3

1806241C1

SHIM,1.28mm Thk

Nozzle (5 in kit) 1.28mm Thk

1шт.

3

1806242C1

SHIM,1.30mm Thk

Nozzle (5 in kit) 1.30mm Thk

1шт.

3

1806243C1

SHIM,1.34mm Thk

Nozzle (5 in kit) 1.34mm Thk

1шт.

3

1806244C1

SHIM,1.38mm Thk

Nozzle (5 in kit) 1.38mm Thk

1шт.

3

1806245C1

SHIM,1.40mm Thk

Nozzle (5 in kit) 1.40mm Thk

1шт.

3

1806246C1

SHIM,1.44mm Thk

Nozzle (5 in kit) 1.44mm Thk

1шт.

3

1806247C1

SHIM,1.48mm Thk

Nozzle (5 in kit) 1.48mm Thk

1шт.

3

1806248C1

SHIM,1.50mm Thk

Nozzle (5 in kit) 1.50mm Thk

1шт.

3

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit) 1.54mm Thk

1шт.

3

1806250C1

SHIM,1.58mm Thk

Nozzle (5 in kit) 1.58mm Thk

1шт.

3

1806251C1

SHIM,1.60mm Thk

Nozzle (5 in kit) 1.60mm Thk

1шт.

3

1806252C1

SHIM,1.64mm Thk

Nozzle (5 in kit) 1.64mm Thk

1шт.

3

1806253C1

SHIM,1.68mm Thk

Nozzle (5 in kit) 1.68mm Thk

1шт.

3

1806254C1

SHIM,1.70mm Thk

Nozzle (5 in kit) 1.70mm Thk

1шт.

3

1806255C1

SHIM,1.74mm Thk

Nozzle (5 in kit) 1.74mm Thk

1шт.

3

1806256C1

SHIM,1.78mm Thk

Nozzle (5 in kit) 1.78mm Thk

1шт.

3

1806257C1

SHIM,1.80mm Thk

Nozzle (5 in kit) 1.80mm Thk

1шт.

3

1806258C1

SHIM,1.84mm Thk

Nozzle (5 in kit) 1.84mm Thk

1шт.

3

1806259C1

SHIM,1.88mm Thk

Nozzle (5 in kit) 1.88mm Thk

1шт.

3

1806260C1

SHIM,1.90mm Thk

Nozzle (5 in kit) 1.90mm Thk

1шт.

3

1806261C1

SHIM,1.94mm Thk

Nozzle (5 in kit) 1.94mm Thk

1шт.

3

1806262C1

SHIM,1.98mm Thk

Nozzle (5 in kit) 1.98mm Thk

1шт.

4

J905153

SPINDLE

SEAT nozzle pressure spring

1шт.

5

J905152

SPRING

nozzle pressure, Includes: Ref. 6 - 7

1шт.

6

J905154

PLATE

VALVE STOP ASSEMBLY, nozzle

1шт.

7

A48201

NUT

cap, nozzle end

1шт.

8

J903313

NOZZLE INJECTION

TIP ASSEMBLY, nozzle injector

1шт.

Ref #8 J903313 tip assy This is an NSS item.

1шт.

Order complete injector.

1шт.

9

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

nozzle

4шт.

10

J900808

SEAL

GASKET nozzle, see note

4шт.

Whenever a nozzle is removed from the cylinder head, J900808 gasket must be replaced before nozzle is installed in cylinder head.

1шт.
