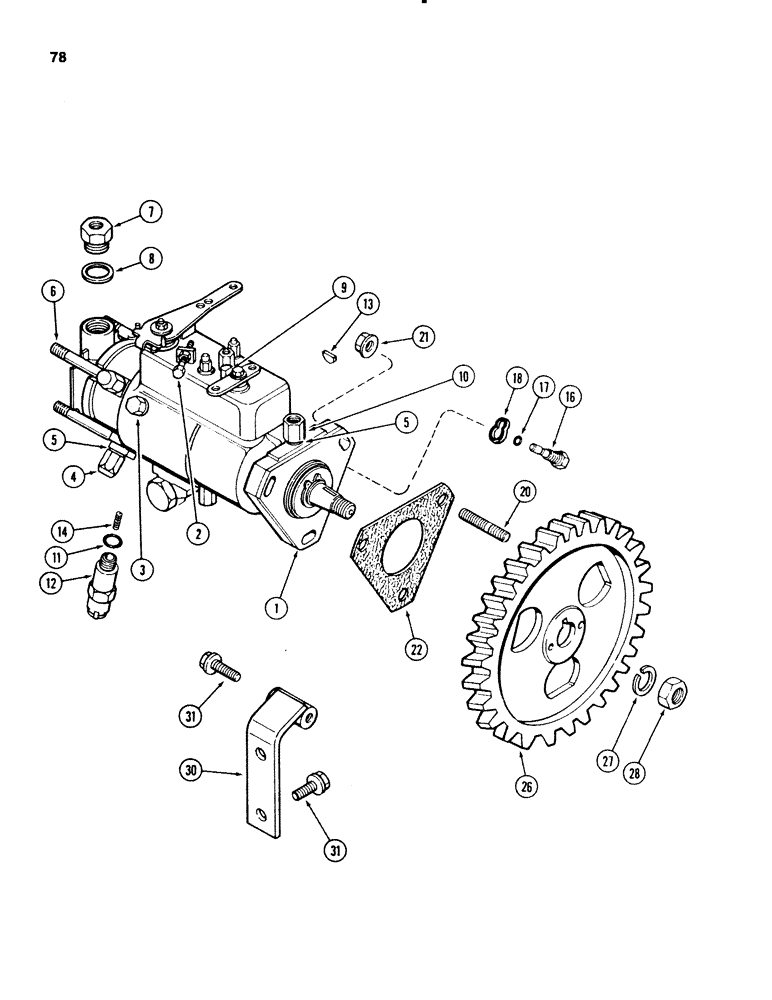

Запчасти Case 580E (078) - FUEL INJECTION PUMP AND DRIVE, 4T-390 AND 4-390 DIESEL ENGINE (03) - FUEL SYSTEM

1

JR908645

PUMP

fuel injection, remanufactured, North America only

1шт.

1

JC908645

CORE-HYDRAULIC PUMP

RETURN NUMBER use this part no. to return pump core for credit

1шт.

1

J908645

PUMP, FUEL INJECTION

PUMP ASSEMBLY, fuel injection, new, Lucas DPA3042/00996, Includes: Ref. 2 - 18

1шт.

Ref #1 J908645 fuel injection pump Use

1шт.

Reman. injection pump for North America.

1шт.

2

J904637

SET SCREW

adjusting, low idle

1шт.

3

K963867

SCREW

ASSEMBLY, bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT banjo

4шт.

5

J904644

WASHER

sealing, package of 10

1шт.

6

K962755

ADAPTER

FITTING banjo

4шт.

7

J904641

FITTING

inlet

1шт.

8

K962748

WASHER

inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE bleed

1шт.

10

J904643

FITTING

return

1шт.

11

J904635

O-RING

O RING solenoid

1шт.

12

J904630

SOLENOID

ASSEMBLY, 12 volt

1шт.

13

J902332

KEY

retainer, pump gear

1шт.

14

J904777

SPRING

plunger

1шт.

16

J904778

BOLT

hex, locking device

1шт.

17

J904780

SEAL

locking bolt

1шт.

18

J904779

WASHER

locking

1шт.

20

J902501

STUD

mounting, M8 x 48 mm

3шт.

21

J900589

NUT

hex flange, M8 x 1 mm

3шт.

22

J905685

GASKET

pump mounting, Replaces J900379

1шт.

26

J902236

GEAR

drive, pump

1шт.

27

92-9

BEARING WASHER,9/16"

1шт.

28

J903738

NUT

hex jam, M14

1шт.

30

J905387

BRACE

fuel pump, Replaces J902704

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex flange head, M8 x 20 mm

3шт.
