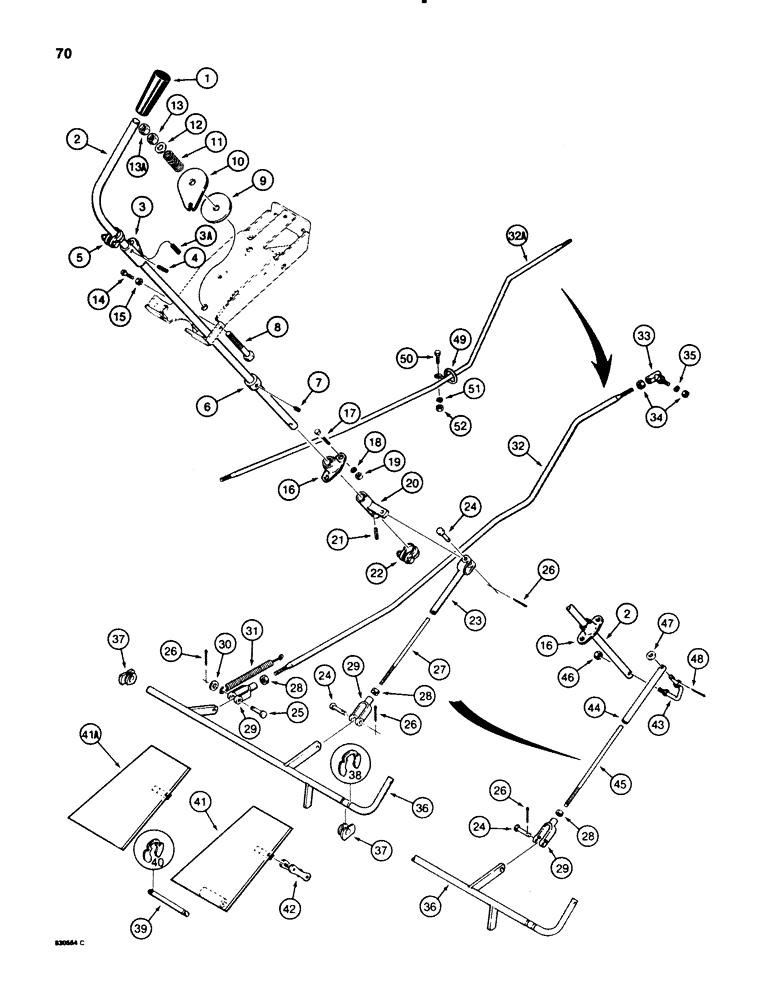

Запчасти Case 580E (070) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D86694

KNOB

hand throttle

1шт.

2

D83336

CONTROL LEVER

LEVER control, hand throttle

1шт.

3

D83332

SLEEVE

throttle control lever, upper, Includes: Ref.3A

1шт.

3a

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

4

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

5

D71880

CLAMP,22.23mm

throttle control lever, upper, includes hardware

1шт.

6

D81756

COLLAR

throttle control lever. Includes: Ref. 7

1шт.

7

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex headless, cup point, plated, 1/4" - 20 NC x 1/4"

1шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex head, plated, 1/2" - 13 NC x 2 1/2"

1шт.

9

R15071

DISC

friction

1шт.

10

D66096

LARGE PLATE

PLATE throttle linkage

1шт.

11

A34113

SPRING

detent

1шт.

12

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13a

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC, Replaces a hex nut on some models

1шт.

14

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Throttle stop Hex, 1/4"-20 x 1", G5

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

L15401

BEARING,15.89mm ID

floor plate

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

D83335

CLAMP

SLEEVE throttle control lever, lower, no longer available, for service order D101883 kit, items 43-48

1шт.

21

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, , If used 5/16" x 13/16", Slotted

1шт.

22

D71880

CLAMP,22.23mm

throttle control lever, lower, includes hardware, if used

1шт.

23

D66655

ROD

SLEEVE rod, if used

1шт.

24

141-53

CLEVIS PIN,5/16" x .940"

plated, rod ends 5/16" x .940"

1-2шт.

25

141-65

CLEVIS PIN,5/16" x 1 1/8"

PIN clevis, throttle rod and spring

1шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

27

D83345

ROD

control lever to shaft, if used

1шт.

28

129-122

NUT,5/16"-24, G5

2шт.

29

H44198

YOKE

CLEVIS rod end, plated

2шт.

30

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

31

D93823

SPRING

throttle return

1шт.

32

D121537

ROD

throttle, to injection pump, no longer used, order D133833 rod, item 32A, and D125868 support and mounting hardware, items 49 - 52

1шт.

32a

D133833

ROD

throttle, to injection pump, used with items 49 - 52

1шт.

33

A10329

BALL JOINT,1/4" - 28 x 1"

at injection pump

1шт.

34

129-121

NUT,1/4"-28, G5

2шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

36

D135768

ROD

SHAFT cross, throttle

1шт.

37

D83337

BUSHING

BEARING throttle rod

2шт.

38

D95095

RING

retaining

2шт.

39

D83344

PIN

pedal base

1шт.

40

D95093

RING

retaining

2шт.

41

D120403

PEDAL

accelerator, used with item 42 link, no longer available, order D132921 pedal

1шт.

41a

D132921

PEDAL

accelerator, used with item 42 link

1шт.

42

B12528

LINK

ASSEMBLY, C2060 roller chain, includes two cotter pins

1шт.

D101883

LINK

KIT, throttle linkage, Includes: Ref. 43 - 48

1шт.

43

D129024

LINK

control, sleeve to control lever

1шт.

44

D129025

TUBE

SLEEVE rod

1шт.

45

D129026

ROD

control, Serial Range: lever-shaft

1шт.

46

131-4

LOCK NUT,5/16"-18, GB

NUT lock, 5/16"

1шт.

47

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

48

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

49

D125868

MOUNTING CLIP

SUPPORT throttle rod

1шт.

50

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

52

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
