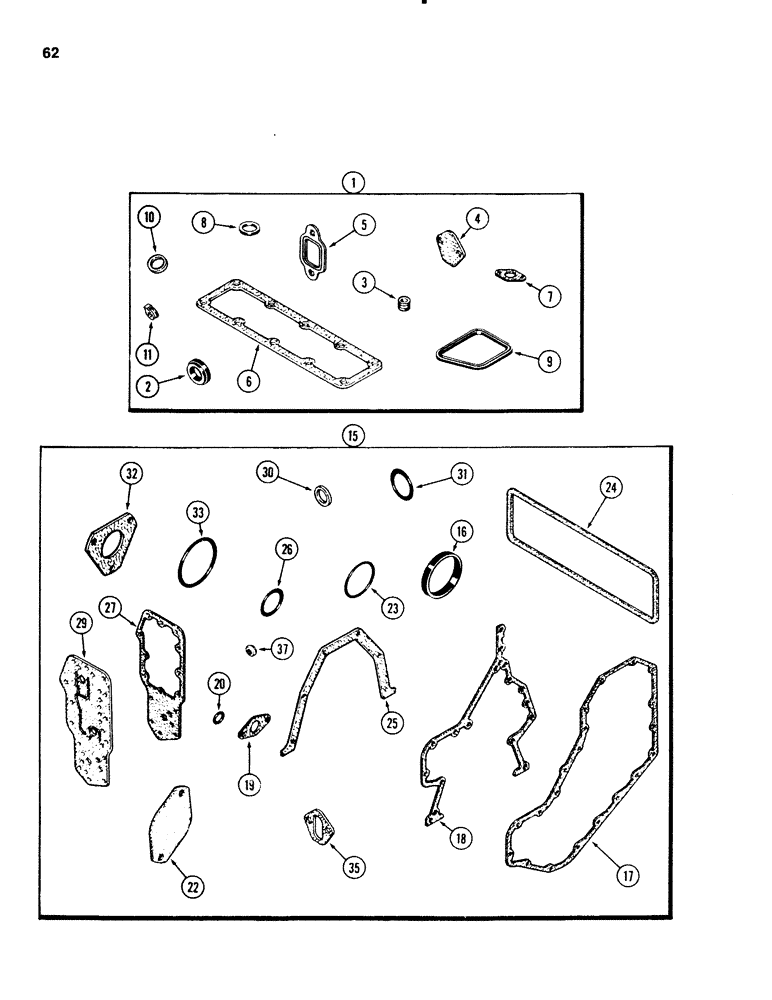

Запчасти Case 580E (062) - ENGINE GASKET KITS, 4T-390 AND 4-390 DIESEL ENGINE, VALVE GRIND (02) - ENGINE

1

A77481

KIT

gasket, valve grind, engine, see note, Includes: Ref. 2 - 11

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 44.

1шт.

2

J903301

GASKET

thermostat, valve grind

1шт.

3

J901097

SEAL

valve, valve grind

8шт.

4

J901356

GASKET,0.5mm Thk

turbocharger, valve grind, Not used this application

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold, valve grind, Replaces J901456

4шт.

6

J901999

GASKET

intake manifold, valve grind

1шт.

7

J901805

GASKET

turbocharger oil drain tube, valve grind, Not used this application

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, valve grind

1шт.

9

J902666

GASKET

valve cover, valve grind

4шт.

10

J900808

SEAL

injector, valve grind

4шт.

11

J903380

SEAL

connector, banjo, valve grind

4шт.

15

A77480

KIT

gasket, engine block, cylinder block, see note, Includes: Ref. 15 - 37

1шт.

For complete engine overhaul, order 1 valve grind kit, 1 cylinder block kit, 1 oil pan kit, Figure 44, front or rear crankshaft seal kit, Figure 56, and required cylinder head gasket, Figure 46.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

tachometer cover, cylinder block

1шт.

17

J905143

GASKET

timing gear cover, cylinder block, Replaces J904492

1шт.

18

J907836

GASKET

timing gear housing, cylinder block

1шт.

19

J905595

GASKET

timing pin housing, cylinder block, Replaces J903926

1шт.

20

A30395

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

O RING timing pin, cylinder block

1шт.

22

A77441

GASKET

tachometer drive, cylinder block

1шт.

23

J903297

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

O RING water pump, cylinder block

1шт.

24

J903837

GASKET

tappet cover, cylinder block

1шт.

25

J901019

GASKET

rear crankshaft seal retainer, cylinder block

1шт.

26

J901467

O-RING,Square, 5.16mm Thk x 50.17mm ID

O RING water inlet, cylinder block

1шт.

27

J904427

GASKET

oil cooler, cylinder block

1шт.

29

J905589

GASKET

filter head, cylinder block, Replaces J904426

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, oil pan heater plug, cylinder block

1шт.

31

J906704

O-RING

O RING engine oil filler, cylinder block

1шт.

32

J905685

GASKET

fuel pump, cylinder block, Replaces J900379

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

O RING flywheel housing, cylinder block

1шт.

35

J904044

GASKET

fuel lift pump, cylinder block

1шт.

37

J900267

SEAL

tappet cover bolt, cylinder block

4шт.
