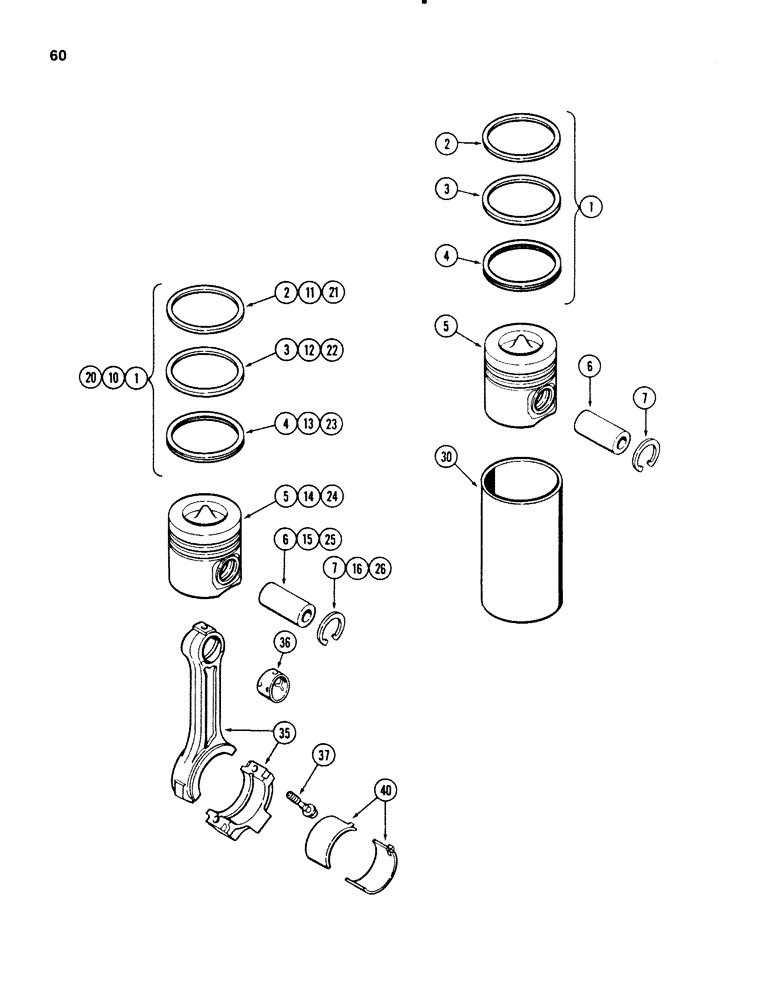

Запчасти Case 580E (060) - PISTONS, 4T-390 DIESEL ENGINE, CONNECTING RODS (02) - ENGINE

A77419

PISTON

KIT, piston, engine, standard, Includes: Ref. 1 - 7

4шт.

1

A77500

PISTON RING SET

KIT, ring, piston, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top, Reference No. J904529

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J904531

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J903384

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, Reference No. J907163

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

retainer, pin

2шт.

A77420

KIT, piston, engine, 0.5 mm oversize, Includes: Ref. 10 - 16

4шт.

Ref A77420 piston kit Order part nbr A77731

1шт.

which replaced A77637

1шт.

10

A77501

PISTON RING SET

KIT, ring, engine, 0.5 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING compression, top, Reference No. J902392

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J904347

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J904349

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, Reference No. J908815

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

retainer, pin

2шт.

A77421

KIT, piston, engine, 1.0 mm oversize, Includes: Ref. 20 - 26

4шт.

Ref A77421 piston kit Order part nbr A77732

1шт.

21

NSS

NOT SOLD SEPARAT

RING compression, top, Reference No. J902441

1шт.

22

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J904348

1шт.

23

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J904350

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, Reference No. J908816

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

retainer, pin

2шт.

30

J904166

SLEEVE

LINER piston, Used only in engine block repair

1шт.

*

When liner is installed, use only A77419 Piston Kit

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY, connecting, new, Reference No. J901085, Includes: Ref. 36 - 37

4шт.

35

JR901569

ROD

Assembly, connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number

4шт.

*

Service only

4шт.

35

84145405R

REMAN-CONNECTING ROD

580SE, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR942581

REMAN-CONNECTING ROD

Connecting Rod

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number, use this number when returning connecting rods

4шт.

*

for credit

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING connecting rod to piston pin, Order J901569, Reference No. J901085

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT connecting rod, hex special, MJ11 x 26 mm

2шт.

40

A77465

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, standard

4шт.

40

A77466

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 0.25 mm oversize

4шт.

40

A77467

BEARING LINER

KIT, bearing, connecting rod, set, upper and lower, 0.5 mm oversize

4шт.

40

A77468

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 0.76 mm oversize

4шт.

40

A77469

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 1.0 mm oversize

4шт.
