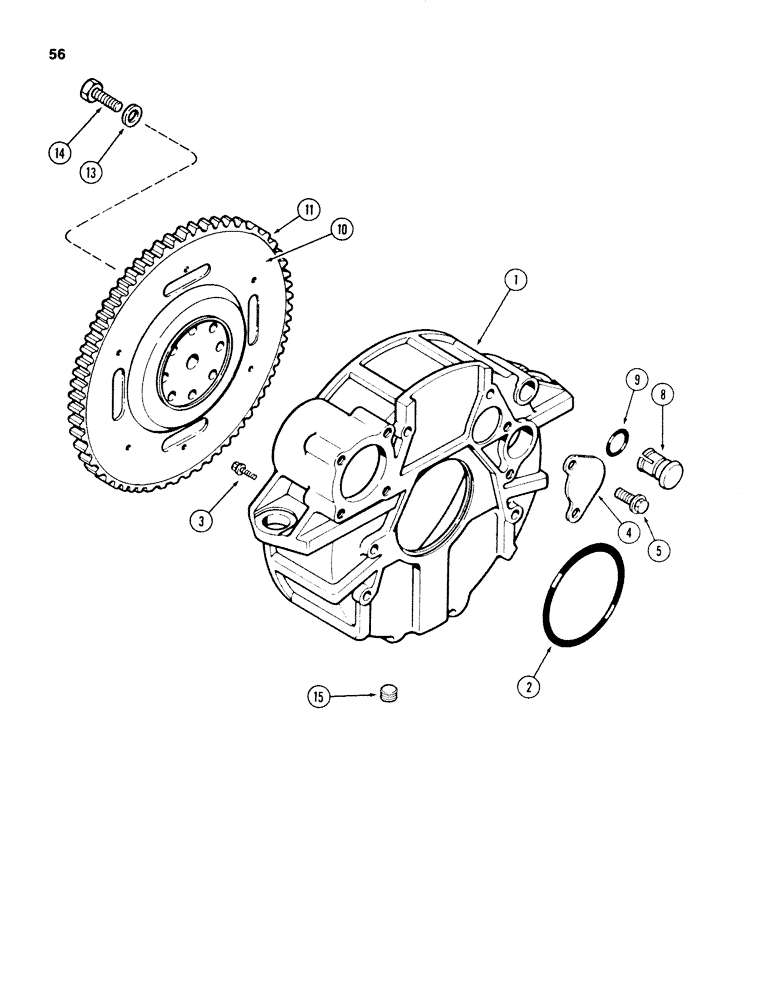

Запчасти Case 580E (056) - FLYWHEEL AND HOUSING, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING flywheel

1шт.

2

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

O RING sealing

1шт.

3

J901408

BOLT

hex flange head, M12 x 40 mm

8шт.

4

J901399

PLATE

cover, housing, Replaces J901399

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex flange head, self tapping, M8 x 21 mm

2шт.

8

J904470

PLUG

housing

1шт.

9

J904469

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O RING plug, 25 mm ID

1шт.

10

J902217

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY, crankshaft, Includes: Ref. 11

1шт.

11

J901774

GEAR,Flywheel

GEAR flywheel

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT hex head, M12 x 30 mm

8шт.

15

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG square socket head pipe, 3/4 inch PT

1шт.
