Запчасти Case 580E (054) - CRANKSHAFT, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

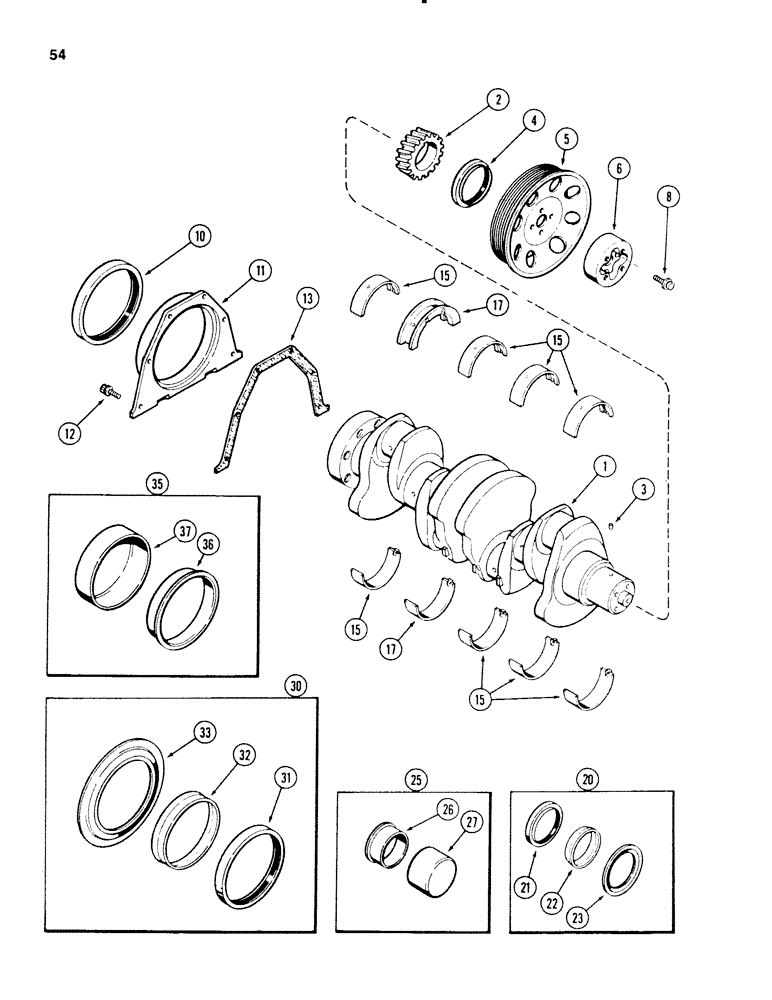

Схема запчастей Case 580E - (054) - CRANKSHAFT, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE
32
31
21
20
26
25
10
5
33
23
36
15
15
12
3
17
2
35
1
15
15
11
6
27
37
8
30
13
17
4
22

Артикул

Название

Примечание

Количество

1

JR908031

CRANKCASE

CRANKSHAFT remanufactured, North America only

1шт.

J929036R

REMAN-CRANKSHAFT

580SE, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

1

JC908031

CORE-CRANKSHAFT

RETURN NUMBER use this part no. to return crankshaft for credit

1шт.

1

J908031

CRANKSHAFT

ASSEMBLY, engine, new, Includes: Ref. 2 - 3

1шт.

J929036R

REMAN-CRANKSHAFT

580SE, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J901258

GEAR

crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, Order Ref 20, Reference No. J900709

1шт.

5

J903858

PULLEY

crankshaft

1шт.

6

J905820

ADAPTER

ADAPTER flange, crankshaft, Replaces J903829

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange head, M12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft rear, Order Ref 30, Reference No. J904089

1шт.

11

J906526

RETAINER

rear seal, Replaces J902674

1шт.

12

J900627

BOLT,Hex Flg, M6 x 14mm, Cl 8.8

hex flange head, M6 x 14 mm

6шт.

13

J901019

GASKET

seal retainer

1шт.

15

A77405

CRANKSHAFT BEARING

KIT, bearing, main, set, upper and lower, standard

4шт.

15

A77472

BEARING SET

KIT, bearing, main, set, upper and lower, 0.25 mm oversize

4шт.

15

A77474

BEARING SET

KIT, bearing, main, set, upper and lower, 0.5 mm oversize

4шт.

15

A77476

BEARING SET

KIT, bearing, main, set, upper and lower, 0.75 mm oversize

4шт.

15

A77478

BEARING SET

KIT, bearing, main, set, upper and lower, 1.0 mm oversize

4шт.

17

A77406

CRANKSHAFT BEARING

KIT, bearing, thrust, main, set, upper and lower, standard

1шт.

17

A77473

THRUST BEARING

KIT, bearing, thrust, main, set, upper and lower, 0.25 mm oversize

1шт.

17

A77475

THRUST BEARING

KIT, bearing, thrust, main, set, upper and lower, 0.5 mm oversize

1шт.

17

A77477

THRUST BEARING

KIT, bearing, thrust, main, set, upper and lower, 0.75 mm oversize

1шт.

17

A77479

THRUST BEARING

KIT, bearing, thrust, main, set, upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

KIT, seal, oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, front, Reference No. J900709

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J904355

SLEEVE

KIT, wear sleeve, crankshaft front, Includes: Ref. 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear, Reference No. J904355

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

30

J904323

SEAL

KIT, seal, oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, rear, Reference No. J904089

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

35

J904356

SLEEVE

KIT, wear sleeve, crankshaft rear, Includes: Ref. 36 - 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE wear Reference No. J904356

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

Выбрано товаров: 41
