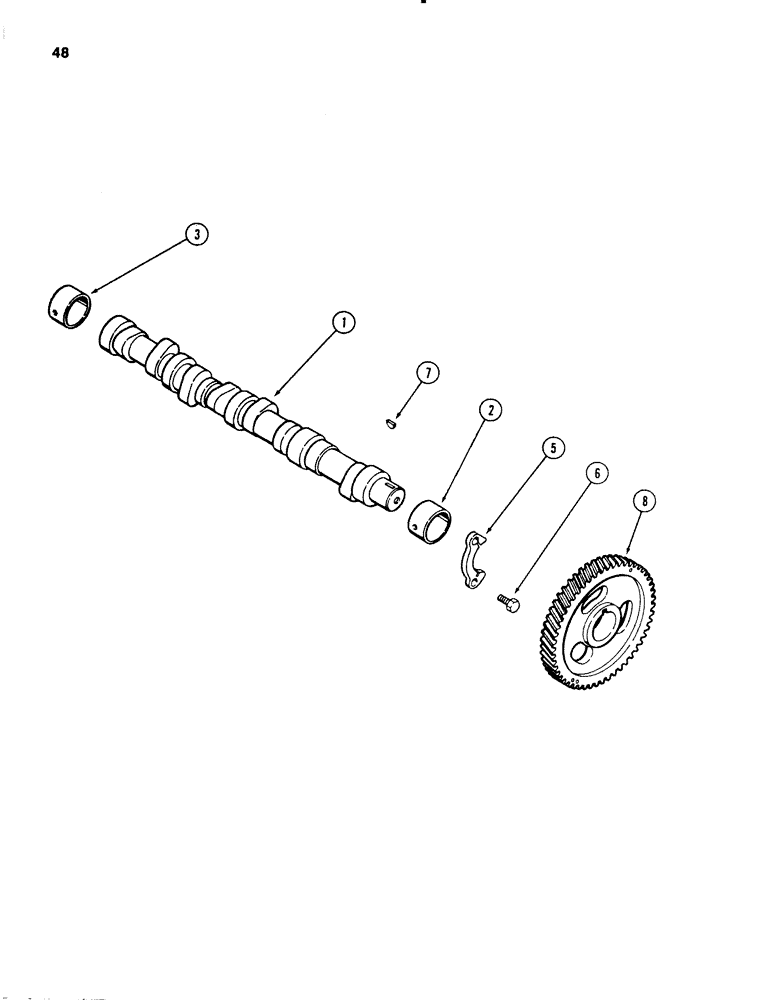

Запчасти Case 580E (048) - CAMSHAFT, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

1

J907446

CAMSHAFT

engine, Replaces J904220

1шт.

2

J901306

BUSHING

camshaft front, standard

1шт.

2

J904369

BUSHING

camshaft front, oversize

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, See Note

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair use J903242 bushings.

1шт.

5

J901761

SUPPORT

thrust, camshaft

1шт.

6

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

J902332

KEY

camshaft gear

1шт.

8

J907431

CAMSHAFT BEARING

GEAR camshaft, Replaces J902235

1шт.
