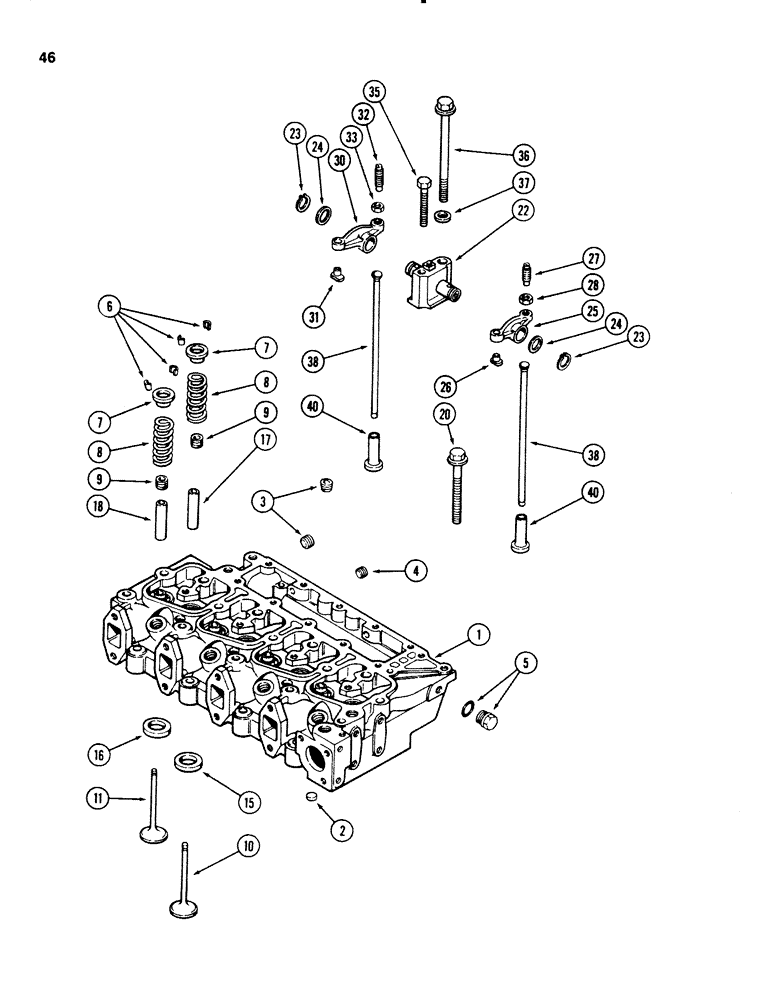

Запчасти Case 580E (046) - CYLINDER HEAD AND VALVE MECHANISM, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

1

JR905864

HEAD

cylinder, remanufactured, North America only

1шт.

1

JC905864

HEAD

RETURN NUMBER use this part no. to return head core for credit

1шт.

1

J905864

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, new, with valves, Replaces J903919, Includes: Ref. 1 - 11

1шт.

1

J904572

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, without valves, Replaces J902614

1шт.

2

J902606

PLUG

expansion, 21 mm, OD

3шт.

3

A77429

PLUG

hex socket pipe, 1/4 8 PT

5шт.

4

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8 27 PT

2шт.

5

J904386

PLUG

pipe, If equipped

1шт.

6

CASJ900250

RETAINER

KEEPER valve

16шт.

7

J900299

RETAINER

valve spring

8шт.

8

J900276

VALVE SPRING

SPRING valve

8шт.

9

J901097

SEAL

valve

8шт.

10

J901117

VALVE

intake

4шт.

11

J901607

VALVE

exhaust

4шт.

15

J906854

SEAT, VALVE

SEAT insert, intake valve, Service repair only

4шт.

16

J904105

SEAT, VALVE

SEAT insert, exhaust valve, Service repair only

4шт.

17

J904408

GUIDE

valve, intake,Service repair only

4шт.

18

J904409

GUIDE

valve, exhaust, Service repair only

4шт.

20

J903938

BOLT

hex flange head, M12 x 70 mm

4шт.

20

J903939

BOLT

hex flange head, M12 x 120 mm

10шт.

22

J910814

SUPPORT

AND SHAFT ASSEMBLY, rocker arm, Replaced J907048

4шт.

23

J900242

SNAP RING

RING retaining, rocker arm

8шт.

24

J900245

WASHER

thrust, rocker arm

8шт.

25

J900540

ARM ASSY.

ARM ASSEMBLY, rocker, intake, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm, Reference No. J900705

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set, 3/8 inch NF x 40 mm

1шт.

28

A77434

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

30

J900539

ARM ASSY.

ARM ASSEMBLY, rocker, exhaust, Includes: Ref. 31 - 33

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT rocker arm, Reference No. J900705

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set, 3/8 inch - NF x 40 mm

1шт.

33

A77434

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

36

J903940

BOLT

hex flange head, M12 x 180 mm

4шт.

38

J904679

PUSH ROD

ROD push, rocker arm

8шт.

40

J907240

TAPPET

valve, push rod, Replaces J901787

8шт.
