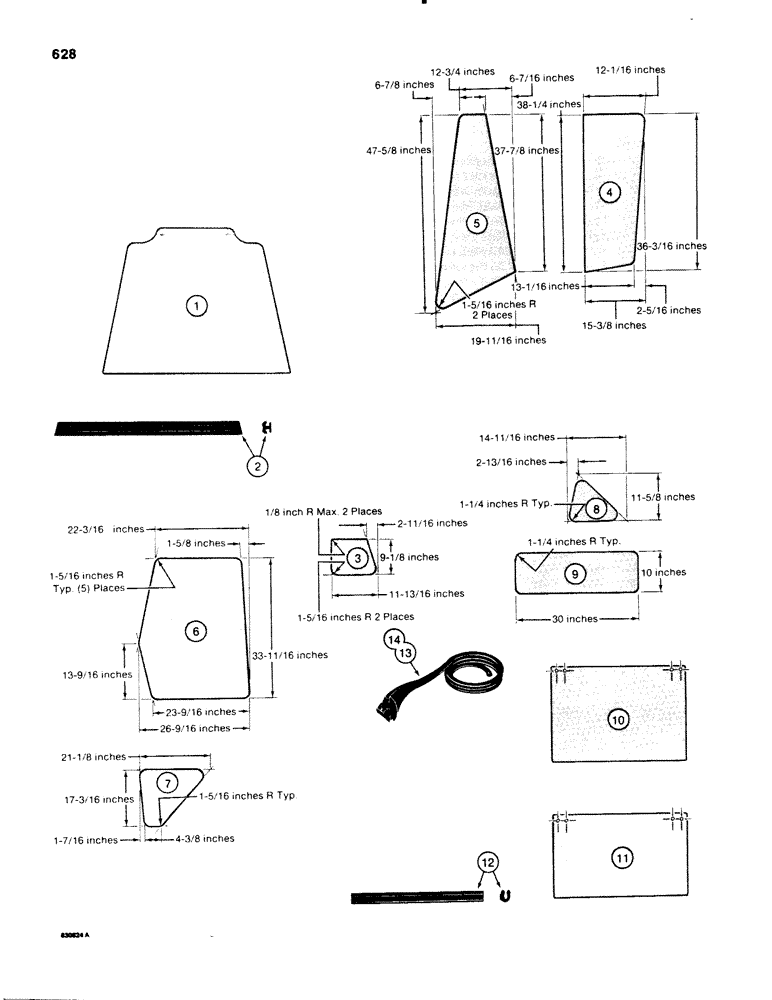

Запчасти Case 580E (628) - CAB GLASS - U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

F44623

WINDSHIELD

GLASS windshield, upper, use Ref. 13 seal

1шт.

2

F44621

MOLDING

SUPPORT windshield, bottom of upper windshield

1шт.

3

REF

INSTRUCTION

GLASS windshield, lower, use Ref. 13 seal

2шт.

4

F44627

GLASS

GLASS side, rear, use Ref. 14 seal

2шт.

REF. 4 THE GLASS SHAPE IS NOT AS SHOWN, THE LEFT SIDE TAPERS TOWARD THE TOP, 12.06 IS CORRECT BUT MEASURED FROM THE UPPER RIGHT CORNER, THE CORNER RADII IS 1.30 TWO PLACES THE OTHER TWO CORNERS ARE A MINIMUM RADIUS.

1шт.

5

F44853

GLASS

GLASS panel, next to rear window, use Ref. 14 seal

2шт.

6

REF

INSTRUCTION

GLASS side windows, use Ref. 13 seal

2шт.

7

REF

INSTRUCTION

GLASS side, front and lower, use Ref. 13 seal

2шт.

8

REF

INSTRUCTION

GLASS rear fenders, use Ref. 13 seal

2шт.

9

REF

INSTRUCTION

GLASS rear closure panel, models without backhoe only, use Ref. 13 seal

1шт.

10

F44629

GLASS

rear window, upper

1шт.

11

F44630

GLASS

rear window, lower

1шт.

12

F44710

SEAL

SUPPORT seal, lower rear window, attaches to top of glass

1шт.

13

A42677

MOLDING

SEAL used around all glass except rear window glass and Ref. 4 and 5, bulk roll, 100 ft long

1шт.

14

F43628

MOLDING

SEAL used around rear side glass, Ref. 4 and 5, bulk roll, 100 ft long

1шт.
