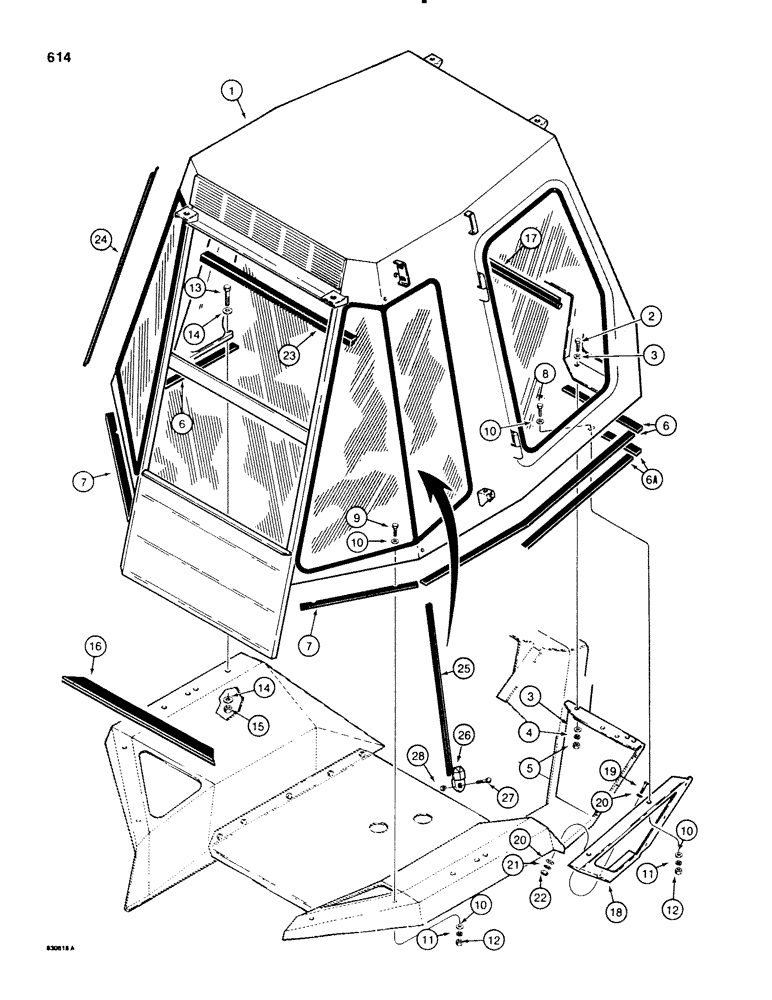

Запчасти Case 580E (614) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CAB operators, machinery item, See Fig. 616-660, See Figure 2 for ordering

1шт.

Part showing in illustration is F97329 frame weldment.

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D90936

BAND

SEAL, 9 ft (2.85 m) long, rear fenders and front, used on models without optional deluxe interior padded covers

1шт.

6a

D133071

STRIP

SEAL, 5 ft (1.5 m) long, front, used on models with optional deluxe interior padded covers, this seal is not required along the rear fenders

1шт.

7

D90935

SEALING STRIP

SEAL rear corners

2шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

10

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

16шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

12

9635082

NUT,5/16" - 18, Gr 5

8шт.

13

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex head, plated, grade 8, 3/4" - 10 NC x 2-1/2"

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened, 3/4"

8шт.

15

129-138

NUT,3/4"-10, G8

4шт.

16

REF

INSTRUCTION

SEAL rear window panel, 33-1/2" (850 mm) long, cut from D90976, see below

1шт.

17

REF

INSTRUCTION

SEAL cowl, 43-5/16" (1100 mm) long, cut from F43086, see below

1шт.

18

D86437

PANEL ASSY.

PANEL closure, right hand, lower

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

20

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

11шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

22

9635082

NUT,5/16" - 18, Gr 5

4шт.

23

F44812

SEAL

SEAL rear, window frame, upper

1шт.

24

F44667

RUBBER

SUPPORT glass, rear, left hand

1шт.

25

F44668

SEAL

SUPPORT glass, rear, right hand

1шт.

26

F45183

BRACKET

RETAINER glass support

4шт.

27

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

4шт.

28

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

D90976

SEAL

bulk, 24-1/2 ft (7.5 m) long

1шт.

F43086

SEAL

bulk, 100 ft (30.48 m) long

1шт.
