Запчасти Case 580E (034) - WATER PUMP AND PULLEYS, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

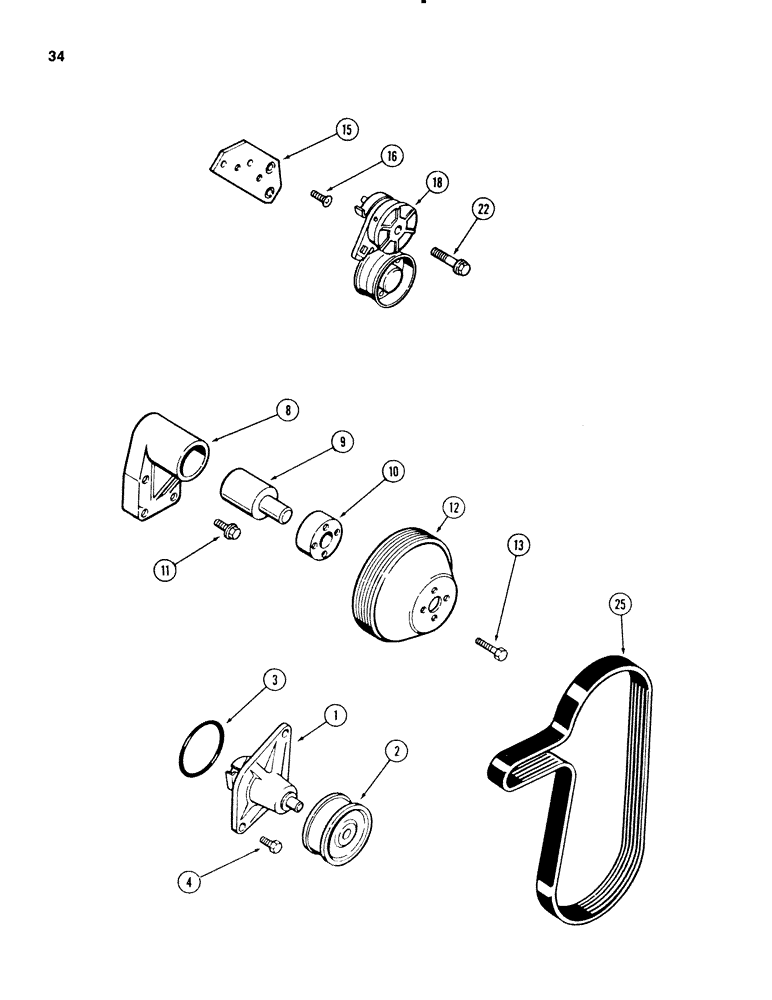

Схема запчастей Case 580E - (034) - WATER PUMP AND PULLEYS, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE
22
11
1
15
16
25
8
13
18
3
4
12
9
10
2

Артикул

Название

Примечание

Количество

AR77471

REMAN-WATER PUMP

PUMP water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

580SE

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER use this part no. to return pump core for credit

1шт.

A77471

PUMP, WATER

KIT, pump, water, new, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

580SE, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY, water, Reference No. J903749

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump, Order A77471 Reference No. J903657

1шт.

3

A30395

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

O RING sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J908270

SUPPORT

BRACKET ASSEMBLY, fan, Replaces J907070, Includes: Ref. 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT bearing, fan, Reference No. J908164

1шт.

10

NSS

NOT SOLD SEPARAT

HUB fan mounting, Reference No. J901364

1шт.

11

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

hex flange, M8 x 40 mm

4шт.

12

J902710

PULLEY

fan

1шт.

13

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

For shipping only Hex, M8 x 20, 8.8, Full Thd

2шт.

15

J904548

BRACKET

belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

flat head cap, M8 x 25

2шт.

18

J908163

BELT TENSIONER

TENSIONER ASSEMBLY, belt

1шт.

Use P/N J912246. Subs to J918944 tensioner and 854 10070 bolt.

1шт.

22

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

belt tensioner retaining

1шт.

25

J903099

V-BELT,3.56 mm W x 1574.80 mm L, 8 Ribs

Fan and Water Pump Pulley 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

Выбрано товаров: 24
