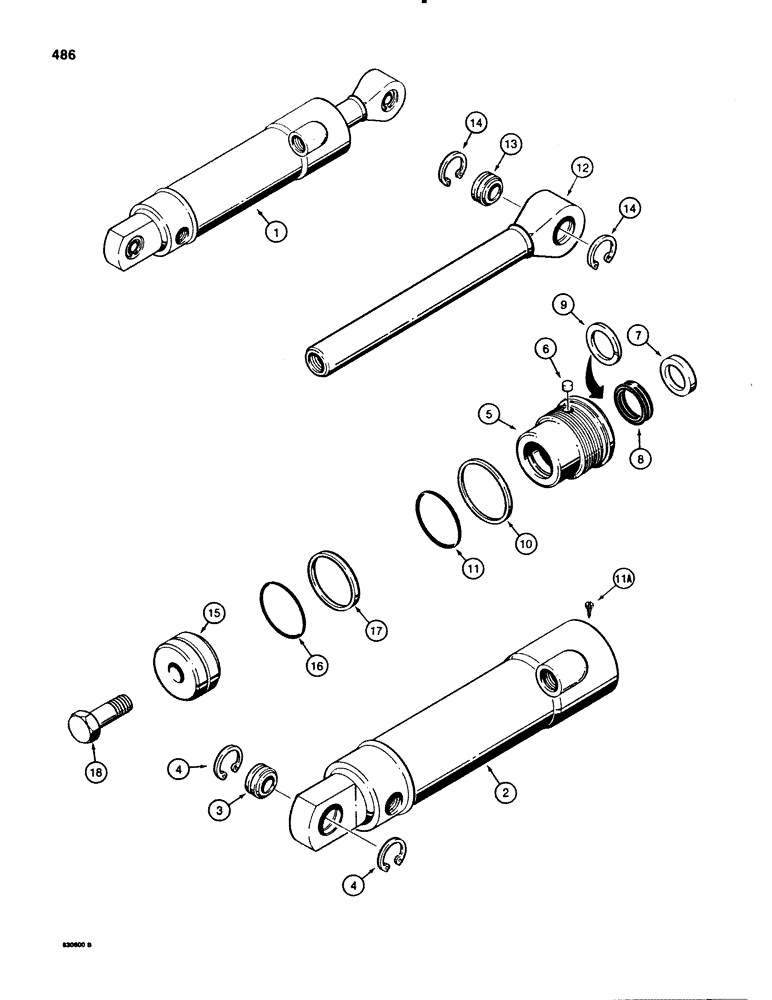

Запчасти Case 580E (486) - G33128 THREE-POINT HITCH PITCH CYLINDER (08) - HYDRAULICS

1

G33128

JACK BODY

CYLINDER ASSEMBLY, pitch, 2-1/2" (64 mm) ID x 7" (178 mm) stroke, Includes: Ref. 2 - 18

1шт.

2

G33129

TUBE,14.69" L

ASSEMBLY, cylinder, Includes: Ref. 3 and 4

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

tube, self aligning, Includes: Ref. 6 - 11

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

G104915

GLAND

ASSEMBLY, cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

6

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

7

D95141

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of Seal Kit, P/N G109476

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

u cup, piston rod, wide

1шт.

Part of Seal Kit, P/N G109476

1шт.

8

G100775

SEAL

u cup, piston rod, service option for severe heat or cold

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O ring

1шт.

Part of Seal Kit, P/N G109476

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O RING gland

1шт.

Part of Seal Kit, P/N G109476

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8", if used

1шт.

12

G33134

ROD

ASSEMBLY, piston, 1-1/4" (32 mm) diameter

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

piston rod, self aligning

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

15

G104098

PISTON

cylinder, single groove, Replaces: P/N G33138 piston, if used

1шт.

16

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

O RING piston

1шт.

Part of Seal Kit, P/N G109476

1шт.

17

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of Seal Kit, P/N G109476

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G109476

GASKET KIT

KIT, seal, Includes: Ref. 7 - 11, 16, 17, plus a wear ring not used in this cylinder

1шт.
