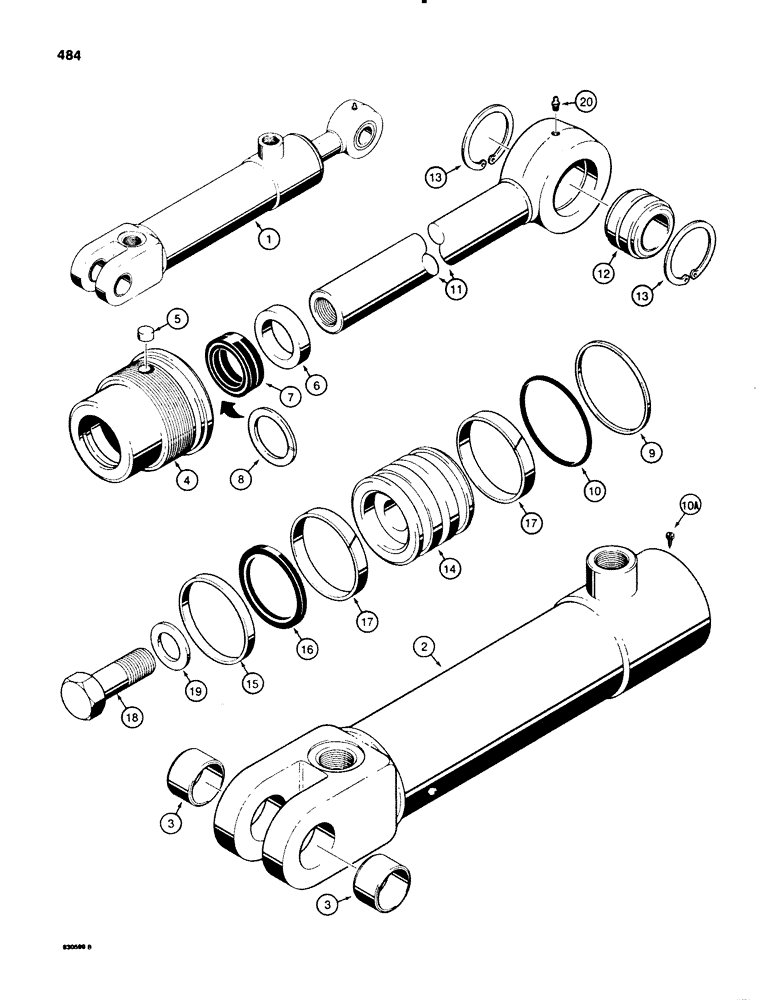

Запчасти Case 580E (484) - G101188 THREE-POINT HITCH TILT CYLINDER (08) - HYDRAULICS

1

G101188

JACK BODY

CYLINDER ASSEMBLY, tilt, 2-1/2" (64 mm) ID x 6-5/16" (160 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G32313

TUBE,14.43" L

ASSEMBLY, cylinder, Includes: Ref. 3

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

G104915

GLAND

ASSEMBLY, cylinder, Includes: Ref. 5 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

6

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit, P/N G109475

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

u cup, piston rod, wide

1шт.

Part of Seal Kit, P/N G109475

1шт.

7

G100775

SEAL

u cup, piston rod, service option for severe heat or cold

1шт.

8

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109475

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O ring

1шт.

Part of Seal Kit, P/N G109475

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O RING gland

1шт.

Part of Seal Kit, P/N G109475

1шт.

10a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8", if used

1шт.

11

G33352

ROD

ASSEMBLY, piston, 1-1/4" (32 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING piston rod, self aligning

1шт.

13

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

14

G100708

PISTON

cylinder

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109475

1шт.

16

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of Seal Kit, P/N G109475

1шт.

17

G100714

RING

wear, piston

2шт.

Part of Seal Kit, P/N G109475

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, grade 8, 3/4" - 16 NF x 2-1/2"

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

G109475

GASKET KIT

KIT, seal, Includes: Ref. 6 - 10, 15, 16 and 17

1шт.
