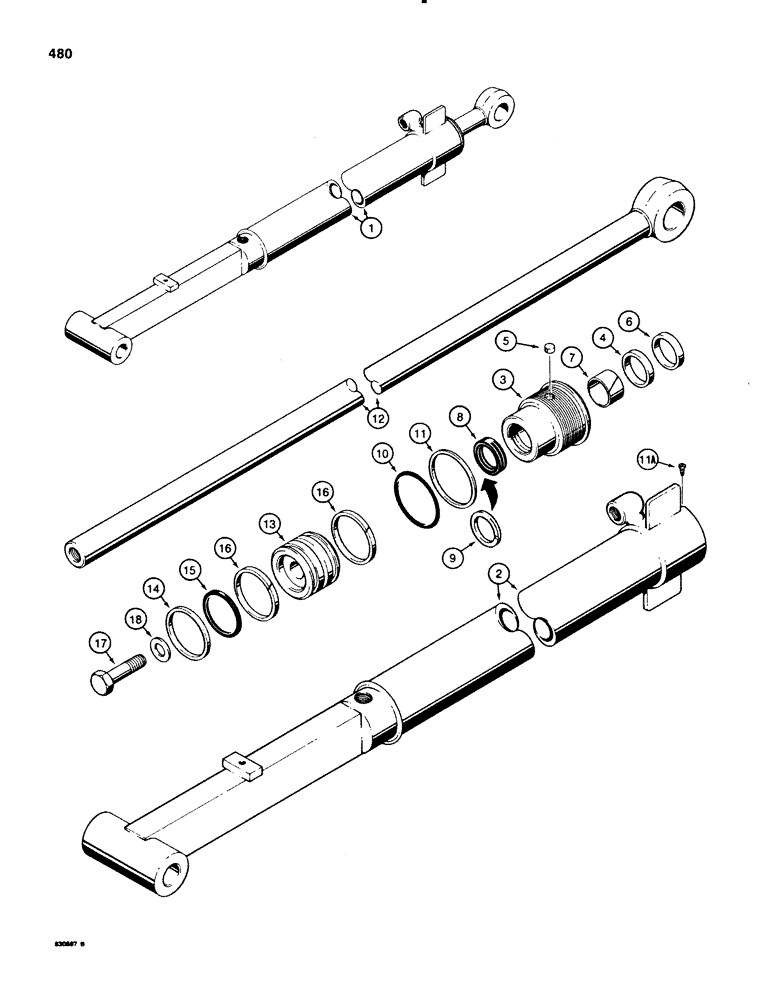

Запчасти Case 580E (480) - G101183 BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G101183

CYLINDER

ASSEMBLY, dipper extension, 3" (76 mm) ID x 48" (219 mm) stroke, Includes: Ref. 2 - 18

1шт.

2

G32699

TUBE,72.80 mm L

cylinder

1шт.

G104222

GLAND

ASSEMBLY, cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING retaining, bushing

1шт.

5

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N G109452

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit, P/N G109452

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

u cup, with O ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109452

1шт.

8

G100776

SEAL

u cup, piston rod, service option for severe heat or cold

1шт.

9

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109452

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

O RING gland

1шт.

Part of Seal Kit, P/N G109452

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8", if used

1шт.

12

G33143

PISTON ROD

ROD ASSEMBLY, piston, 1-1/2" (38 mm) diameter

1шт.

13

G100442

PISTON

cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G109452

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of Seal Kit, P/N G109452

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

2шт.

Part of Seal Kit, P/N G109452

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, grade 8, 3/4" - 16 NF x 2-1/2"

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

G109452

GASKET KIT

KIT, seal, Includes: Ref. 6 - 11, 14, 15 and 16

1шт.
