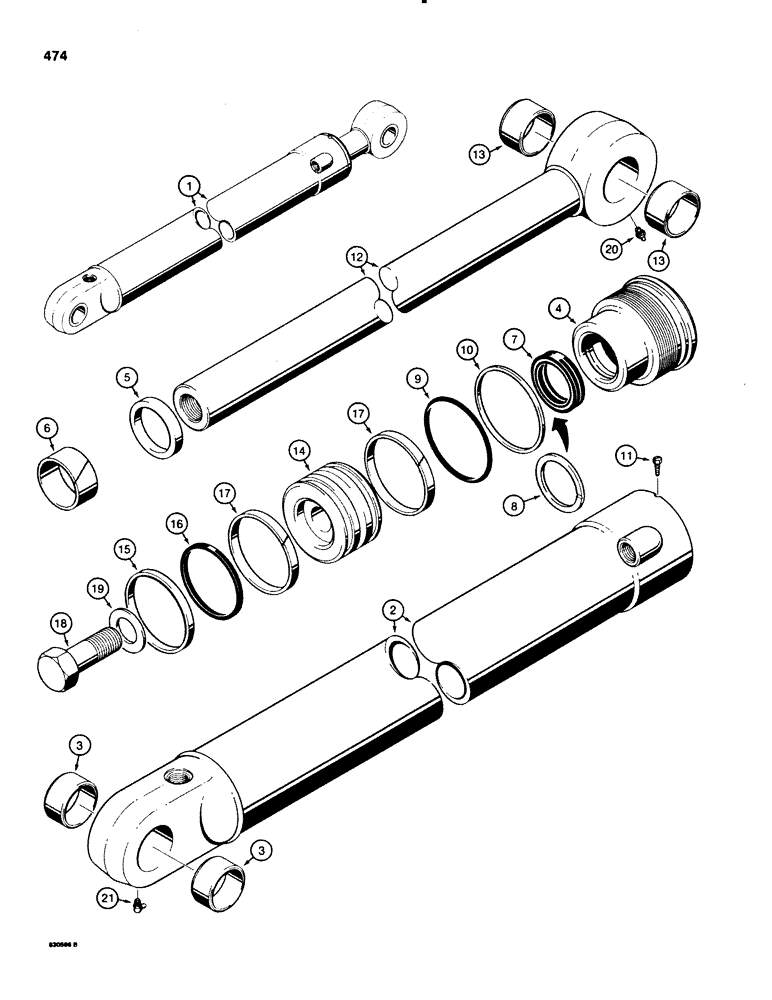

Запчасти Case 580E (474) - G103350 AND G109434 BACKHOE BUCKET CYLINDERS (08) - HYDRAULICS

1

G103350

CYLINDER

ASSEMBLY, bucket, 3-1/2" (89 mm) ID x 30-9/16" (776 mm) stroke, with bushings in cylinder tube eye, no longer available, order P/N G109434 cylinder, Includes: Ref. 2 - 21

1шт.

1

G109434

CYLINDER

ASSEMBLY, bucket, 3-1/2" (89 mm) ID x 30-9/16" (776 mm) stroke, without bushings in cylinder tube eye, Includes: Ref. 2 - 21

1шт.

2

G109097

TUBE

ASSEMBLY, P/N G103350 cylinder, with bushings, no longer available, order P/N G109435 tube

1шт.

2

G109435

TUBE,88.67mm Bore Dia

P/N G109434 cylinder, without bushings, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

P/N G109097 tube only

2шт.

G104268

GLAND

ASSEMBLY, cylinder, Includes: Ref. 5 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N G109504

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of Seal Kit, P/N G109504

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

u cup, with O ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109504

1шт.

7

G100780

SEAL

u cup, piston rod, service option for severe heat or cold

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109504

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

O RING gland

1шт.

Part of Seal Kit, P/N G109504

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup, gland O ring

1шт.

Part of Seal Kit, P/N G109504

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8"

1шт.

12

G103351

ROD

ASSEMBLY, piston, 2-1/2" (64 mm) diameter

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

piston rod

2шт.

14

G103357

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109504

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of Seal Kit, P/N G109504

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit, P/N G109504

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

G105980

WASHER

hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING greased, straight, 1/8" NPT

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

G109504

KIT

seal, Includes: Ref. 5 - 10, 15, 16 and 17

1шт.
