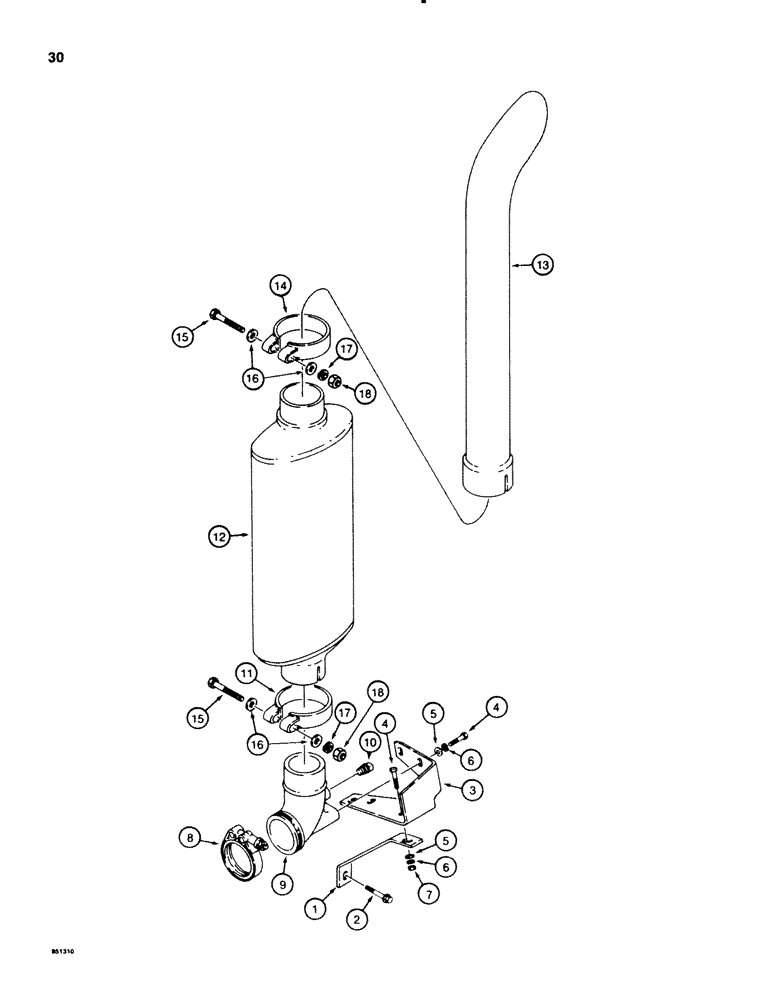

Запчасти Case 580E (030) - MUFFLER AND EXHAUST SYSTEM, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

1

L115129

SUPPORT

bracket

1шт.

2

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

hex flange head, plated, 10 mm - 1.5 x 80 mm (8.8)

1шт.

3

L114429

SUPPORT

BRACKET muffler mounting

1шт.

4

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

6

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

5шт.

7

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

1шт.

8

A170467

CLAMP,72mm ID

t bolt type, Serial Range: adapter-turbine

1шт.

9

A173795

ELBOW

ADAPTER exhaust, 93 degree

1шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

square head, 1/4" NPT, adapter

1шт.

11

R27691

CLAMP

muffler, lower

1шт.

12

A170065

MUFFLER

engine exhaust, 2 slots

1шт.

13

A172158

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension, 28-1/4" long

1шт.

14

D136017

CLAMP

muffler, upper

1шт.

15

113-2281

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex head, special locking, black Teflon, 3/8" - 16 NC x 2-3/4"

2шт.

16

195-129

WASHER,3/8"

flat, plated, 3/8"

4шт.

17

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-770

NUT,3/8"-16, G5

hex, black plated, 3/8" - 16 NC

2шт.
