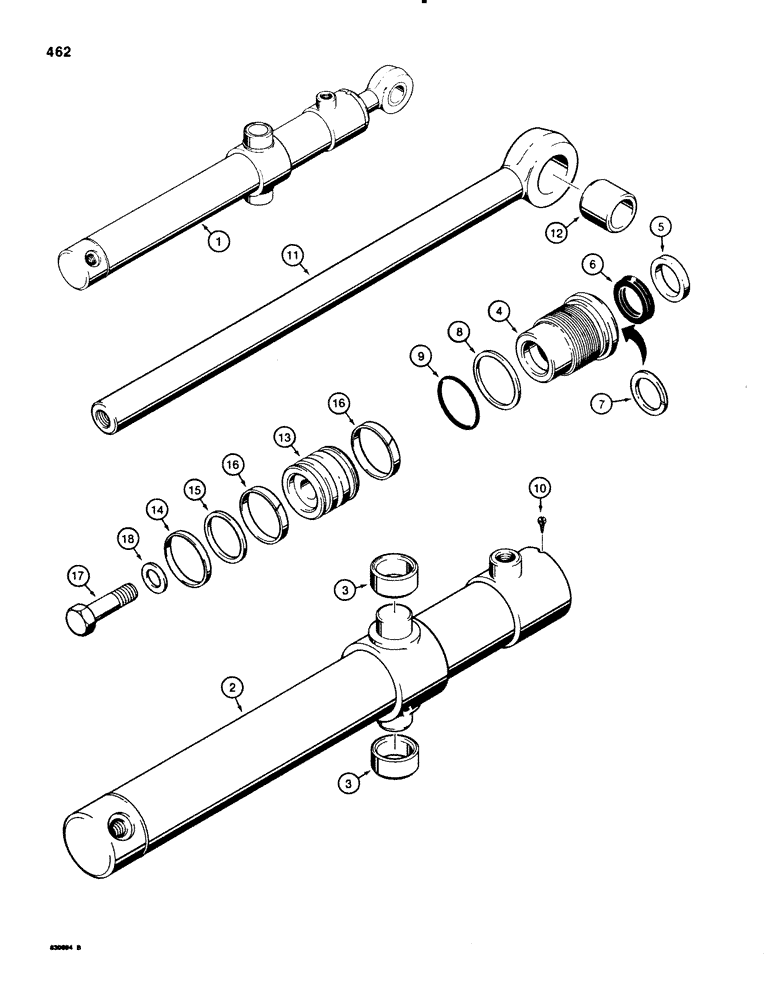

Запчасти Case 580E (462) - G101186 AND G101187 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G101186

CYLINDER

ASSEMBLY, bucket, right hand, 2-1/2" (64 mm) ID x 20" (508 mm) stroke, Includes: Ref. 2 - 18

1шт.

1

G101187

CYLINDER

ASSEMBLY, bucket, left hand, 2-1/2" (64 mm) ID x 20" (508 mm) stroke, Includes: Ref. 2 - 18

1шт.

2

D31098

TUBE

ASSEMBLY, right hand cylinder, Includes: Ref. 3

1шт.

2

D31099

TUBE

ASSEMBLY, left hand cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

tube trunnion

2шт.

G104008

GLAND

ASSEMBLY, cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit, P/N G109456

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

u cup, with O ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109456

1шт.

6

G100776

SEAL

u cup, piston rod, service option for severe heat or cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109456

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O ring

1шт.

Part of Seal Kit, P/N G109456

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O RING gland

1шт.

Part of Seal Kit, P/N G109456

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8"

1шт.

11

G33422

ROD

ASSEMBLY, piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

rod

1шт.

13

G100706

PISTON

cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109456

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of Seal Kit, P/N G109456

1шт.

16

G100714

RING

wear, piston

2шт.

Part of Seal Kit, P/N G109456

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, grade 8, 3/4" - 16 NF x 2-1/2"

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

G109456

GASKET KIT

KIT, seal, Includes: Ref. 5, 6, 7, 9 and 14 - 16

1шт.
