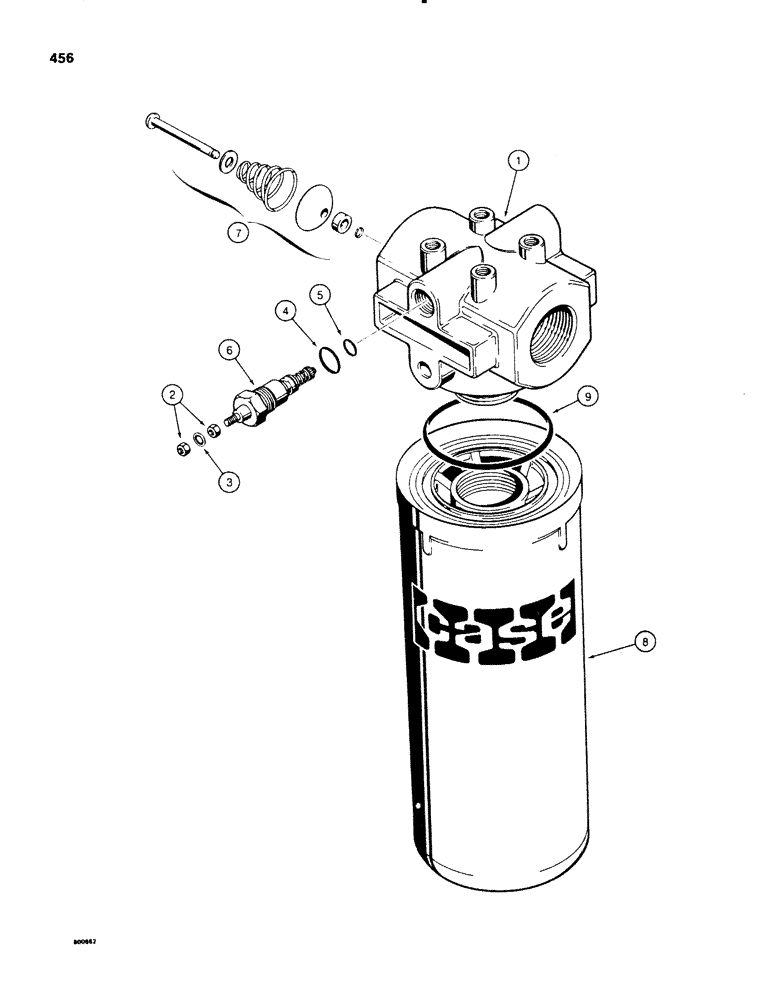

Запчасти Case 580E (456) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D122362

FILTER

ASSEMBLY, hydraulic oil, without O ring ports, if used, Includes: Ref. 1 - 9

1шт.

D131293

FILTER

ASSEMBLY, hydraulic oil, with O ring ports, if used, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

N6755

PRESSURE SWITCH

RESTRICTION INDICATOR ASSEMBLY, electric

1шт.

N6941

KIT

restriction indicator repair, Includes: P/N N6941 and Ref. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY, filter, interchangeable with P/N D94236 element, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

O RING, Serial Range: filter-head

1шт.
