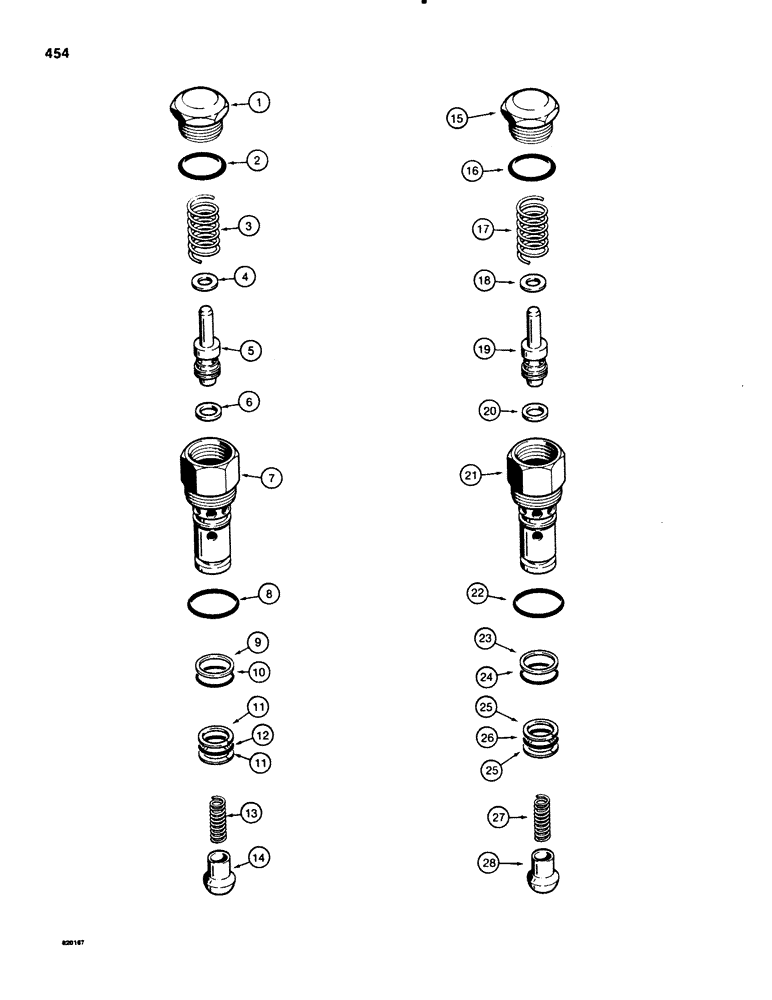

Запчасти Case 580E (454) - THREE-POINT HITCH RELIEF VALVE ASSEMBLIES, LIFT SECTIONS (08) - HYDRAULICS

H593228

VALVE

circuit relief, lift circuit, upper port, H593228 circuit relief valve, Includes: Ref. 1 - 14

1шт.

The pressure setting of the repair valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

1

D39716

PLUG

CAP circuit relief valve, H593228 circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING cap, H593228 circuit relief valve

1шт.

3

D51540

VALVE SPRING

SPRING outer, H593228 circuit relief valve

1шт.

4

A55893

SHIM,.0418" Thk

(1.016 mm), H593228 circuit relief valve .0418" Thk

1шт.

4

A55894

SHIM,.0209" Thk

(0.508 mm), H593228 circuit relief valve .0209" Thk

1шт.

4

D39712

SHIM

.010" (0.254 mm) thick, H593228 circuit relief valve

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY, circuit relief valve, H593228 circuit relief valve, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER body, H593228 circuit relief valve

1шт.

6

D39714

RING

SEAL plunger, H593228 circuit relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY circuit relief valve, H593228 circuit relief valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING outer, H593228 circuit relief valve

1шт.

9

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O ring, H593228 circuit relief valve

1шт.

10

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING center, H593228 circuit relief valve

1шт.

11

H411371

BACK-UP RING

RING backup, inner O ring, H593228 circuit relief valve

2шт.

12

16905

O-RING,0.551" ID x 0.07" Width

O RING inner, H593228 circuit relief valve

1шт.

13

H268730

SPRING

load check valve poppet, H593228 circuit relief valve

1шт.

14

D28576

VALVE POPPET

POPPET load check valve, H593228 circuit relief valve

1шт.

D122552

VALVE, PRESSURE RELI

VALVE circuit relief, lift circuit, lower port, D122552 circuit relief valve, Includes: Ref. 15 - 28

1шт.

The pressure setting of the repair valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

15

D39716

PLUG

CAP circuit relief valve, D122552 circuit relief valve

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING cap, D122552 circuit relief valve

1шт.

17

D39709

SPRING

outer, D122552 circuit relief valve

1шт.

18

A55893

SHIM,.0418" Thk

(1.016 mm), D122552 circuit relief valve .0418" Thk

1шт.

18

A55894

SHIM,.0209" Thk

(0.508 mm), D122552 circuit relief valve .0209" Thk

1шт.

18

D39712

SHIM

.010" (0.254 mm) thick, D122552 circuit relief valve

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY, circuit relief valve, D122552 circuit relief valve, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER circuit relief valve, D122552 circuit relief valve

1шт.

20

D39714

RING

SEAL plunger, D122552 circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

BODY circuit relief valve, D122552 circuit relief valve

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING outer, D122552 circuit relief valve

1шт.

23

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O ring, D122552 circuit relief valve

1шт.

24

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING center, D122552 circuit relief valve

1шт.

25

H411371

BACK-UP RING

RING backup, inner O ring, D122552 circuit relief valve

2шт.

26

16905

O-RING,0.551" ID x 0.07" Width

O RING inner, D122552 circuit relief valve

1шт.

27

H268730

SPRING

load check valve poppet, D122552 circuit relief valve

1шт.

28

D28576

VALVE POPPET

POPPET load check valve, D122552 circuit relief valve

1шт.
