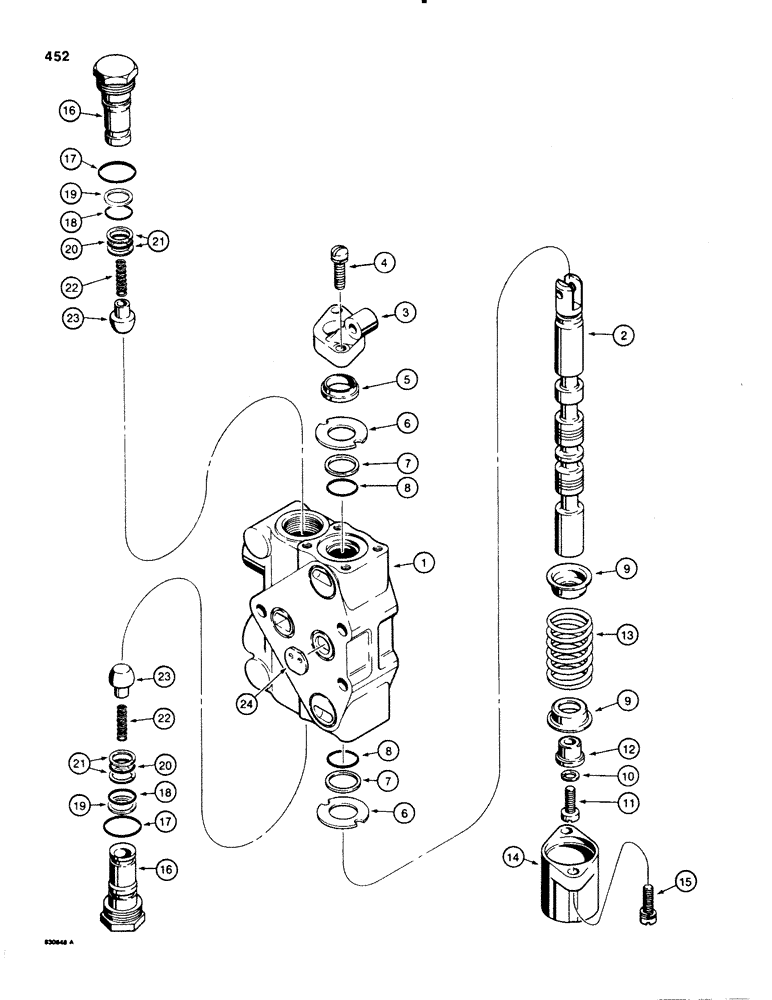

Запчасти Case 580E (452) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT, AND IMPLEMENT SECTIONS (08) - HYDRAULICS

N8691

KNIFE SECTION

SECTION hitch pitch, tilt, and implement, used in four-spool control valves

2-4шт.

N7115

VALVE BLOCK

SECTION hitch auxiliary, used in four-spool control valve, D99475 only, Includes: Ref. 1 through 23 and P/N D87307

1шт.

Auxiliary section includes a lever, link assembly, and pins not required for use the 580 Super E.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve section, not the same between N8691 and N7115

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER plated, 1/4" - 20 NC x 7/8"

2шт.

5

N7029

SCRAPER

WIPER spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER seal

2шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING backup, O-ring

2шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

spool seal

2шт.

9

H267591

SPRING SEAT

SEAT centering spring

2шт.

10

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

machine, Fillister head, plated, 5/16" - 18 NC x 3/4"

1шт.

12

H267609

REAR FENDER

COLLAR spool

1шт.

13

D87306

SPRING

centering, spool

1шт.

14

H267583

FITTING

CAP valve spool

1шт.

15

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER plated, 1/4" - 20 NC x 7/8"

2шт.

D87307

VALVE

load check, valve section, Includes: Ref. 16 - 23

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

outer

1шт.

18

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

center

1шт.

19

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O-ring

1шт.

20

16905

O-RING,0.551" ID x 0.07" Width

O-RING inner

1шт.

21

D88725

BACK-UP RING

RING backup, inner O-ring

2шт.

22

H268730

SPRING

poppet

1шт.

23

D28576

VALVE POPPET

POPPET load check valve

1шт.

24

N7116

PLATE

flow restriction, used with N7115 section only, if used

1шт.
