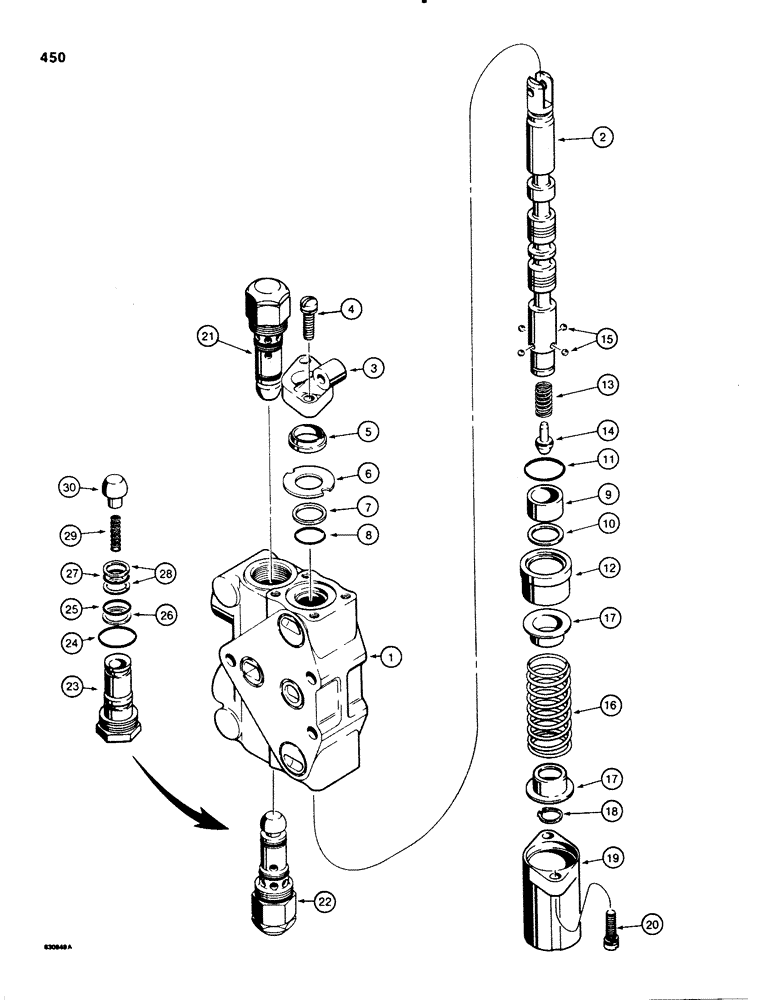

Запчасти Case 580E (450) - THREE-POINT HITCH CONTROL VALVES, LIFT SECTION WITH TWO CIRCUIT RELIEF VALVES (08) - HYDRAULICS

N8692

KNIFE SECTION

SECTION hitch lift, contains two circuit relief valves, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER plated, 1/4" - 20 NC x 7/8"

2шт.

5

N7029

SCRAPER

WIPER spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER seal

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING backup, spool seal O ring

1шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O RING spool seal

1шт.

9

N7038

SLEEVE

spool

1шт.

10

N7036

SEALING RING

RING quad, spool seal

1шт.

11

343900R1

O-RING,1.051" ID x 0.07" Width

O RING detent sleeve to section housing

1шт.

12

N7034

SLEEVE VALVE

SLEEVE detent

1шт.

13

N7037

SPRING

detent

1шт.

14

N7035

VALVE POPPET

PLUNGER ball retaining

1шт.

15

211-256

BALL

grade 50, chrome alloy steel, 7/32"

4шт.

16

N7032

SPRING

centering, spool

1шт.

17

N7033

SEAT

centering spring

2шт.

18

103-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext, seat

1шт.

19

N7031

COVER

CAP valve spool

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER plated, 1/4" - 20 NC x 7/8"

2шт.

21

H593228

VALVE

circuit relief, upper port, See Figure 454

1шт.

22

D122552

VALVE, PRESSURE RELI

VALVE circuit relief, lower port, See Figure 454

1шт.

D87307

VALVE

load check, valve section, if used

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG load check valve, Includes: Ref. 23 - 30

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING outer

1шт.

25

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING center

1шт.

26

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O ring

1шт.

27

16905

O-RING,0.551" ID x 0.07" Width

O RING inner

1шт.

28

D88725

BACK-UP RING

RING backup, inner O ring

2шт.

29

H268730

SPRING

poppet

1шт.

30

D28576

VALVE POPPET

POPPET load check valve

1шт.
