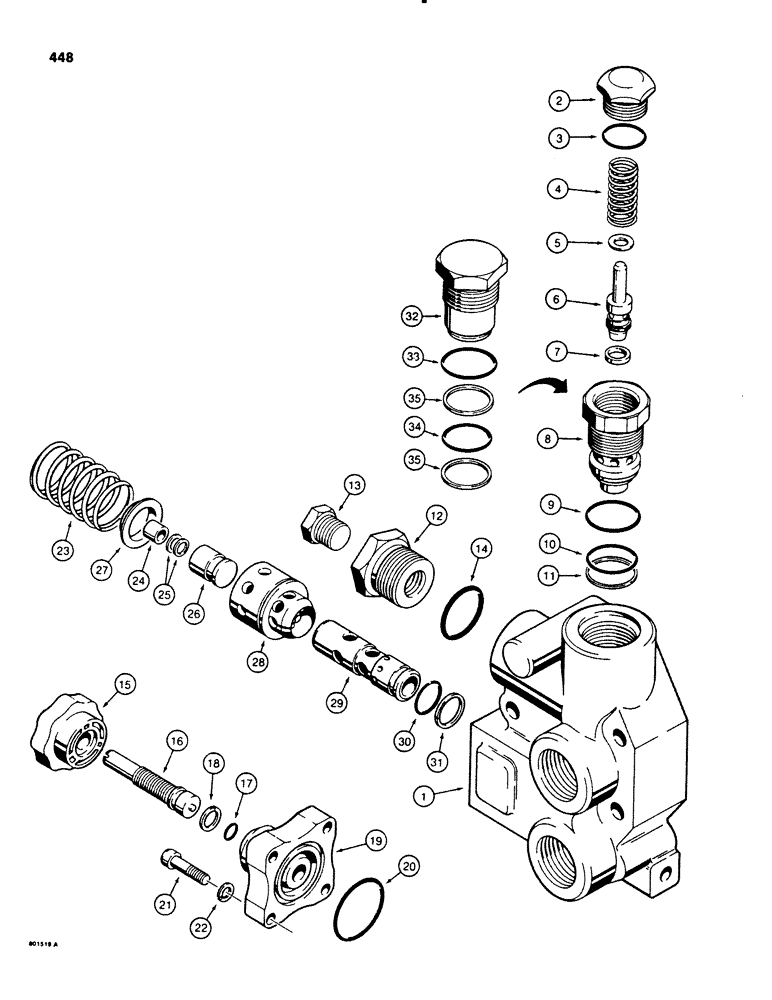

Запчасти Case 580E (448) - THREE-POINT HITCH CONTROL VALVE, INLET-OUTLET SECTION (08) - HYDRAULICS

N7108

VALVE

SECTION inlet outlet, uses N7040 main relief valve

1шт.

D122551

VALVE

SECTION inlet outlet, uses D87301 plug in place of main relief valve, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING inlet outlet section

1шт.

N7040

VALVE

main relief, hitch valve, used in N7108 section only, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

CAP main relief valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING cap

1шт.

4

D51540

VALVE SPRING

SPRING main relief valve

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

.010" (0.254 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY, main relief, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER main relief valve

1шт.

7

D39714

RING

SEAL plunger

1шт.

8

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

9

343900R1

O-RING,1.051" ID x 0.07" Width

O RING large

1шт.

10

D39718

O-RING,0.989" ID x 1.129" OD

O RING small

1шт.

11

D87303

BACK-UP RING

backup, small O ring

1шт.

N7109

PLUG

ASSEMBLY, section port, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG section port

1шт.

13

221-841

PLUG

hex socket head, 1/4" NPT

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING plug

1шт.

N7111

GOVERNOR

REGULATOR ASSEMBLY, flow control, Includes: Ref. 15 - 22

1шт.

15

D54188

KNOB

regulator assembly

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

17

D54290

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O RING adjusting

1шт.

18

C11865

RING

backup, O ring

1шт.

19

NSS

NOT SOLD SEPARAT

COVER regulator

1шт.

20

A16755

O-RING

O RING cover

1шт.

21

61-414

HEX SOC SCREW,1/4"-20 x 7/8"

BOLT hex socket head, 1/4" - 20 NC x 7/8"

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

N7110

CONTROL

ASSEMBLY, flow, Includes: Ref. 23 - 31

1шт.

23

L35302

SPRING

flow control

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE piston

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM sleeve

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON flow control

1шт.

27

L35301

CUPEL

COLLAR metering sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE metering

1шт.

29

NSS

NOT SOLD SEPARAT

GUIDE sleeve, flow control

1шт.

30

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING guide

1шт.

31

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, O ring

1шт.

D87301

PLUG

ASSEMBLY, main relief port, used in D122551 section only, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG main relief port

1шт.

33

343900R1

O-RING,1.051" ID x 0.07" Width

O RING plug, large

1шт.

34

D39718

O-RING,0.989" ID x 1.129" OD

O RING plug, small

1шт.

35

D87303

BACK-UP RING

backup, small O ring

2шт.
