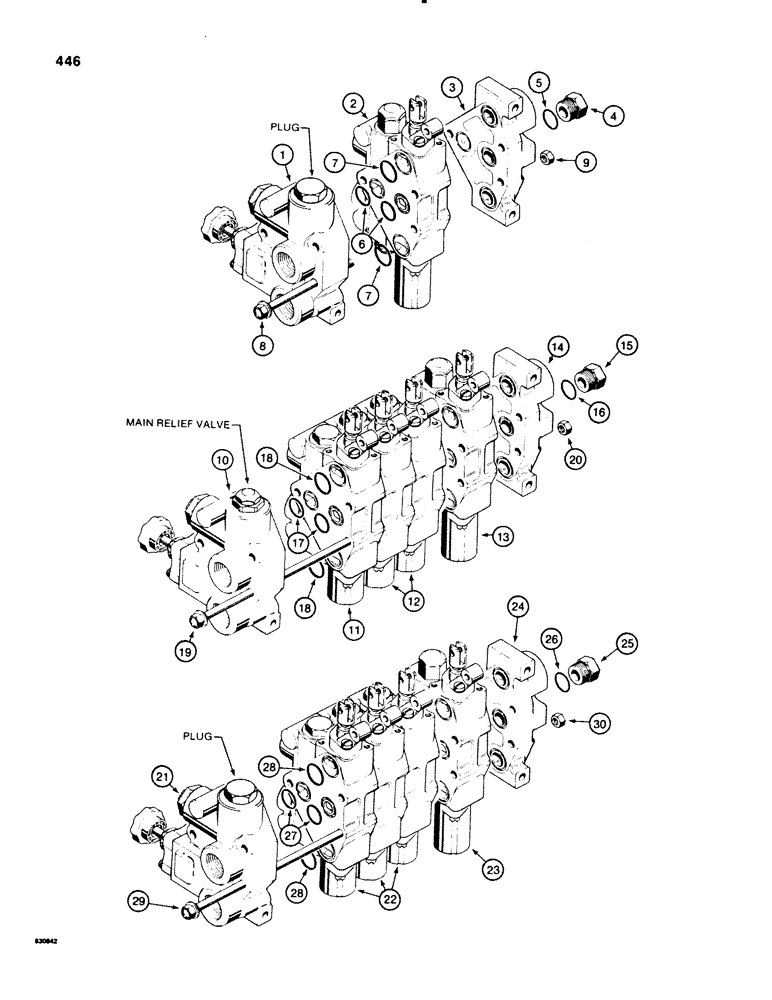

Запчасти Case 580E (446) - THREE-POINT HITCH CONTROL VALVES, ONE-SPOOL VALVE ASSEMBLY (08) - HYDRAULICS

D124204

VALVE

control, hitch, one spool, Ref. 1 has a plugged main relief port, one spool valve assembly, Includes: Ref. 1 - 9

1шт.

1

D122551

VALVE

END SECTION inlet outlet, See Figure 448, one spool valve assembly

1шт.

2

N8692

KNIFE SECTION

SECTION lift, See Figure 450, one spool valve assembly

1шт.

D122553

PLATE

END SECTION cover plate, one spool valve assembly, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE cover, one spool valve assembly

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex head, 1-1/16" - 12 NC, cover plate, one spool valve assembly, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING plug, one spool valve assembly

1шт.

6

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O RING between sections, 13/16" (21 mm) ID, one spool valve assembly

4шт.

7

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O RING between sections, 15/16" (24 mm) ID, one spool valve assembly

4шт.

8

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

tie, 3/8" - 24 NF x 4-1/4", one spool valve assembly

3шт.

Ref. 8, N7039, 3/8" 24 tie bolt, Using part nbr

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

Hex, Replaced 129-123, 1 spool valve assembly 3/8"-24, G5

3шт.

D99475

VALVE

control, hitch, fourspool, Ref. 10 has a main relief valve, no longer used, for service order D124205, four spool valve assembly, Includes: Ref. 10 - 20

1шт.

10

N7108

VALVE

END SECTION inlet outlet, See Figure 448, four spool valve assembly

1шт.

11

N7115

VALVE BLOCK

SECTION auxiliary, See Figure 452, four spool valve assembly

1шт.

Auxiliary section has a flow restriction seal, see parts list Figure 452, and is always located next to the inlet-outlet section. Also includes a lever, link assembly, and pins not required for use on the 580 Super E.

1шт.

12

N8691

KNIFE SECTION

SECTION pitch, tilt, implement, See Figure 452, four spool valve assembly

2шт.

13

N8692

KNIFE SECTION

SECTION lift, See Figure 450, four spool valve assembly

1шт.

D122553

PLATE

END SECTION cover plate, four spool valve assembly, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE cover, four spool valve assembly

1шт.

15

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex head, 1-1/16" - 12 NC, cover plate, four spool valve assembly, Includes: Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING plug, four spool valve assembly

1шт.

17

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O RING between sections, 13/16" (21 mm) ID, four spool valve assembly

10шт.

18

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O RING between sections, 15/16" (24 mm) ID, four spool valve assembly

10шт.

19

D86578

BOLT

tie, 3/8" - 24 NF x 9-1/2", four spool valve assembly

3шт.

20

129-123

NUT,3/8"-24, G5

Four spool valve assembly 3/8"-24, G5

3шт.

D124205

VALVE

control, hitch, four spool, Ref. 21 has a plugged main relief port, four spool valve assembly, Includes: Ref. 21 - 30

1шт.

21

D122551

VALVE

END SECTION inlet outlet, See Figure 448, four spool valve assembly

1шт.

22

N8691

KNIFE SECTION

SECTION implement, pitch and tilt, See Figure 452, four spool valve assembly

3шт.

23

N8692

KNIFE SECTION

SECTION lift, See Figure 450, four spool valve assembly, Includes: Ref. 24 - 26

1шт.

D122553

PLATE

END SECTION cover plate, four spool valve assembly

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE cover, four spool valve assembly

1шт.

25

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex head, 1-1/16" - 12 NC, cover plate, four spool valve assembly, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING plug, four spool valve assembly

1шт.

27

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O RING between sections, 13/16" (21 mm) ID, four spool valve assembly

10шт.

28

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O RING between sections, 15/16" (24 mm) ID, four spool valve assembly

10шт.

29

D86578

BOLT

tie, 3/8" - 24 NF x 9-1/2", four spool valve assembly

3шт.

30

129-123

NUT,3/8"-24, G5

Four spool valve assembly 3/8"-24, G5

3шт.
