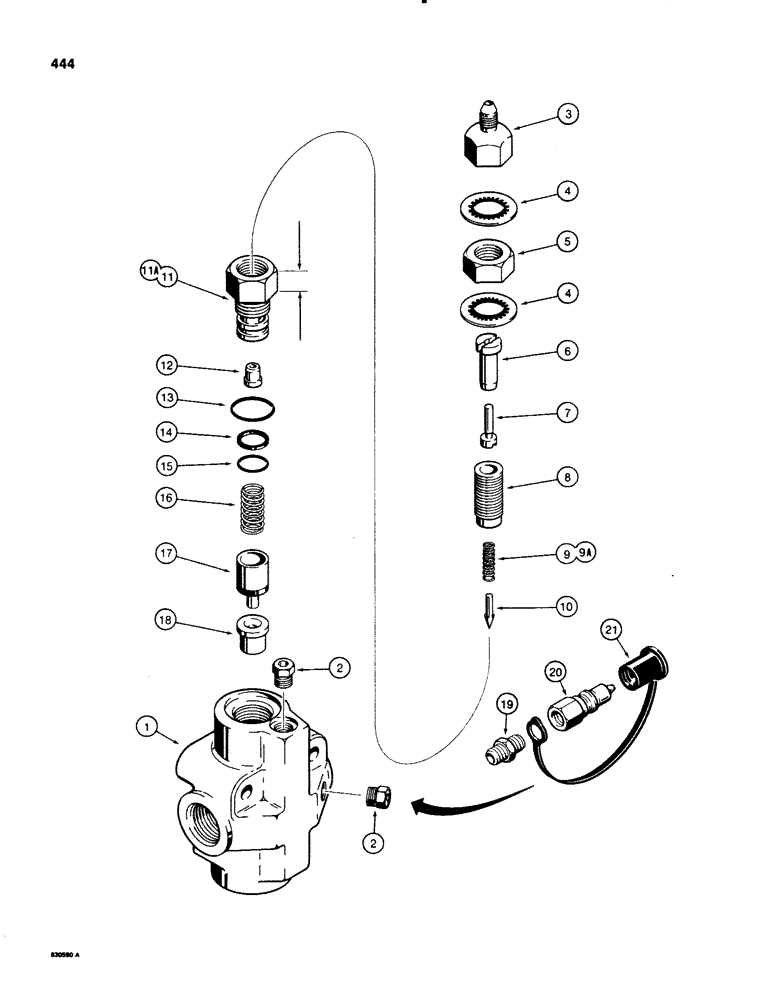

Запчасти Case 580E (444) - D89498 AND D128430 STEERING RELIEF VALVES (08) - HYDRAULICS

D89498

VALVE

RELIEF VALVE ASSEMBLY, steering, Parker No. VPRP5X 017, no longer used, order D128430 valve

1шт.

D128430

VALVE

RELIEF VALVE ASSEMBLY, steering, Parker No. VPRP5X 024, Includes: Ref. 1 through 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING relief valve

1шт.

2

221-1849

PLUG

hex socket head, 1/8" NPT

2шт.

N9524

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY, steering, Includes: Ref. 3 - 18

1шт.

3

N6841

FITTING

pilot relief

1шт.

4

D27259

SEAL

special

2шт.

5

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT hex, jam, 5/8" - 18 NF

1шт.

6

N6803

RETAINER

piston

1шт.

7

N6802

PISTON

two stage

1шт.

8

N6840

SCREW,1.306"

adjusting

1шт.

9

D26268

SPRING

pilot, N6839 body

1шт.

9a

N9526

SPRING

pilot, N9009 body

1шт.

10

D26267

PLUNGER

pilot

1шт.

11

N6839

BODY

relief, hex head height is 1/2", no longer used, when replacing this body, must order both N9526 spring and N9009 body

1шт.

11a

N9009

CAP

BODY relief, hex head height is 5/8"

1шт.

12

N6804

SEAT

pilot plunger

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, small O ring

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

O RING small

1шт.

16

D26261

VALVE SPRING

SPRING relief valve

1шт.

17

L30687

SPOOL

POPPET relief valve

1шт.

18

D26259

SEAT

poppet

1шт.

19

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

NIPPLE hex, 1/4" NPT x 1/8" NPT, if used

1шт.

20

S206607

DISC

COUPLING male, if used

1шт.

Ref: 20 S206607 Male coupling Female coupling is part nbr. S206610, and dust plug for female coupling is part nbr. S206609.

1шт.

21

D123387

DUST CAP

COVER dust, if used

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, cap

1шт.
