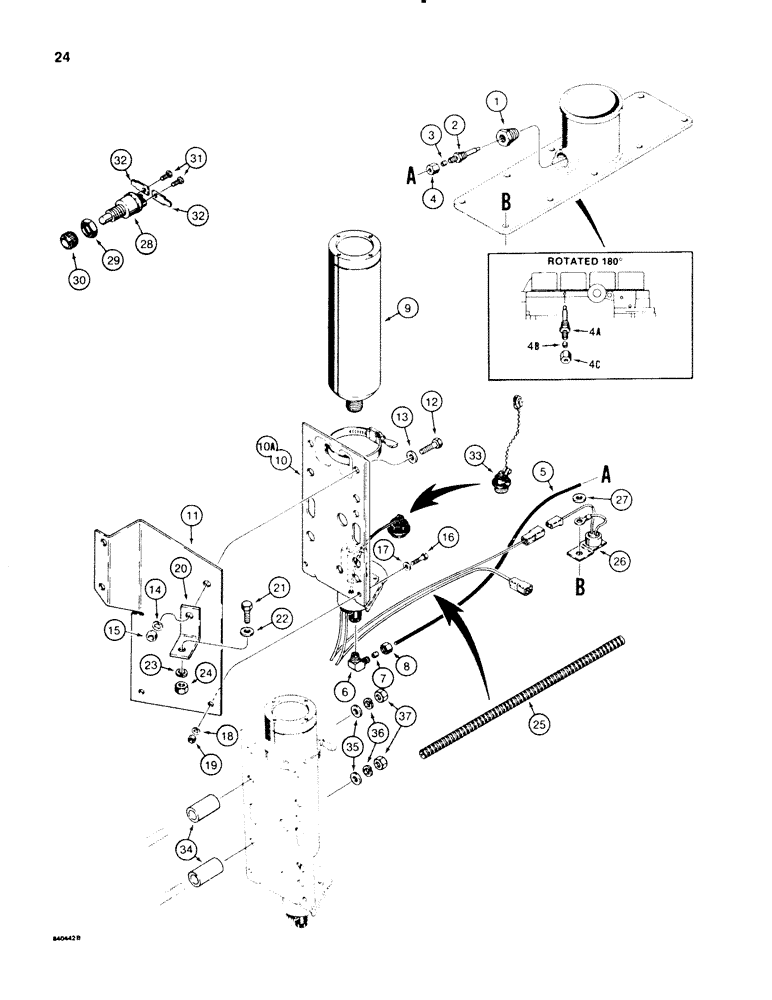

Запчасти Case 580E (024) - COLD START SYSTEM (02) - ENGINE

1

J904346

PLUG

manifold, Replaces existing manifold plug without a tapped hole for injector nozzle, used with A171946 nozzle and A171938 valve

1шт.

A171946

NOZZLE CAP

NOZZLE ASSEMBLY, cold start injector, single orifice nozzle, mounts in top of manifold with item 1 plug, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

3

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

4

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

brass, 1/8" 5/16"-24, 45º Fl, Comp

1шт.

A172352

NOZZLE CAP

NOZZLE ASSEMBLY, cold start injector, .008 dual orifice nozzle, mounts to side of manifold, used with A172116 valve, no longer available, order A172900 nozzle, Includes: Ref. 4A - 4C

1шт.

4a

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

4b

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

4c

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

brass, 1/8" 5/16"-24, 45º Fl, Comp

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY, cold start injector, .011 dual orifice nozzle, component parts not serviced separately, mounts to side of manifold, used with A172116 valve

1шт.

5

D41013

TUBE

valve to injector nozzle, 18" (457 mm) long, Replaces 12" (305 mm) long tube used on some models, see Parts Substitution List for bulk hose options

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 6 - 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

6

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

brass, 1/8" 5/16"-24, 45º Fl, Comp

1шт.

9

A171940

CYLINDER

STARTING FLUID cylinder

1шт.

10

A171938

VALVE

ASSEMBLY, 1.5 cc starting fluid injection, valve hex port for cylinder mounting is silver colored, with bracket, component parts not serviced separately, used with A171946 nozzle and J904346 plug

1шт.

10a

A172116

VALVE

ASSEMBLY, 3 cc starting fluid injection, valve hex port for cylinder mounting is gold colored, with bracket, component parts not serviced separately, used with A172352 or A172900 nozzle

1шт.

11

D128096

BRACKET

valve mounting, attaches to air cleaner mounting bracket, used on models without turbocharged engine

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13

195-525

WASHER,3/8", SAE

flat, plated, if used, 3/8"

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

17

195-518

WASHER,1/4", SAE

flat, plated, if used, 1/4"

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

2шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

2шт.

20

D128097

BRACKET

SUPPORT valve mounting bracket to air cleaner mounting bracket, used on models without turbocharged engine

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

22

195-525

WASHER,3/8", SAE

flat, plated, if used, 3/8"

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

25

D128402

PLASTIC-RUBBER TUBE

SLEEVE wire guard, 15" (380 mm) long

1шт.

26

A171943

IGNITION SWITCH

SWITCH temperature, circuit breaking, uses existing intake manifold mounting hardware

1шт.

27

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

L72776

SWITCH

ASSEMBLY, cold start, includes screws, must also order, 2, L59682 blade terminals, item 32, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

SWITCH cold start

1шт.

29

H275784

JAM NUT

jam, special

1шт.

30

D73741

NUT

special

1шт.

31

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No. 10 - 32 NF x 1/4"

2шт.

32

L59682

TERMINAL CONNECTOR

TERMINAL blade, used with L72776 switch

2шт.

33

N8826

PLUG

with chain, place in starting fluid valve when starting fluid cylinder is not in place, item 9, if used

1шт.

34

D95022

SPACER

valve mounting, used on models with turbocharged engine

2шт.

35

195-525

WASHER,3/8", SAE

flat, plated, if used, 3/8"

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

2шт.
