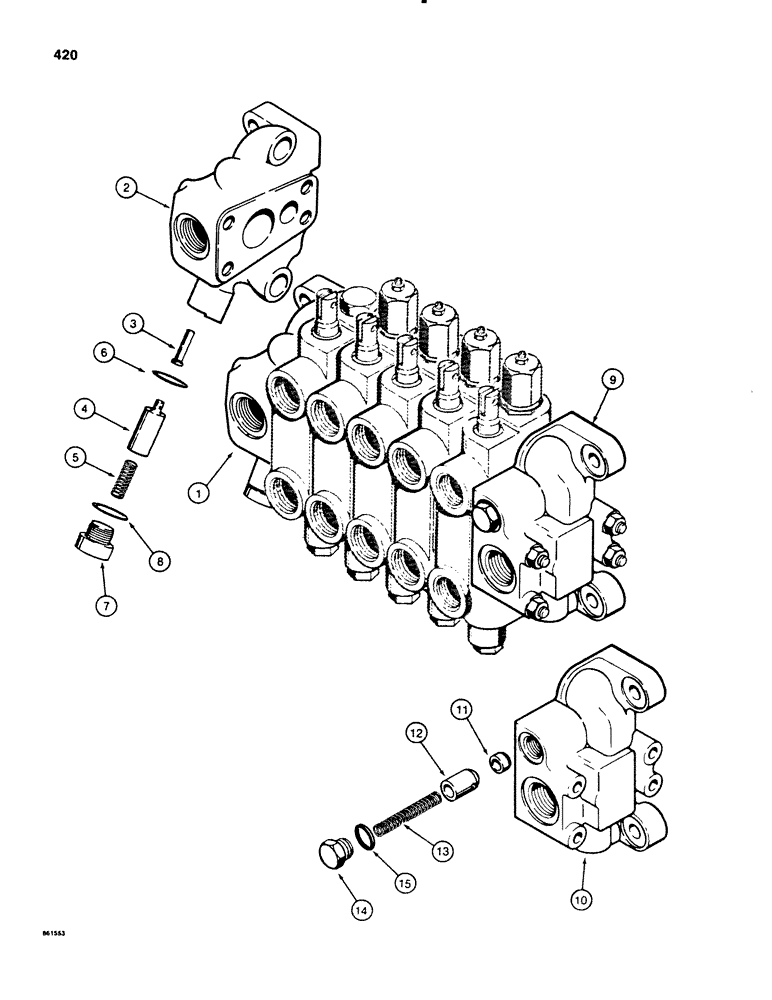

Запчасти Case 580E (420) - BACKHOE CONTROL VALVE, OUTLET SECTION, INLET SECTION (08) - HYDRAULICS

1

G33108

MANIFOLD

SECTION outlet, outlet section, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

MANIFOLD section body, outlet section

1шт.

3

G33110

PISTON

regeneration sensing, outlet section

1шт.

4

G34586

SPOOL,22mm OD x 59.87mm L

regeneration, outlet section

1шт.

5

G33112

SPRING

regeneration spool, outlet section

1шт.

6

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

O RING internal, outlet section

1шт.

7

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

regeneration spool, outlet section, Includes Ref 8 Hex Soc, 1 3/16"-12 ORB

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

O RING plug, outlet section

1шт.

9

G33102

MANIFOLD

SECTION inlet, inlet section, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD section body, inlet section

1шт.

11

G33104

SEAT

check valve poppet, inlet section

1шт.

12

G33105

VALVE POPPET

POPPET check valve, inlet section

1шт.

13

G33106

SPRING

check valve, inlet section

1шт.

14

A39586

PLUG

check valve, inlet section

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING plug, inlet section

1шт.
