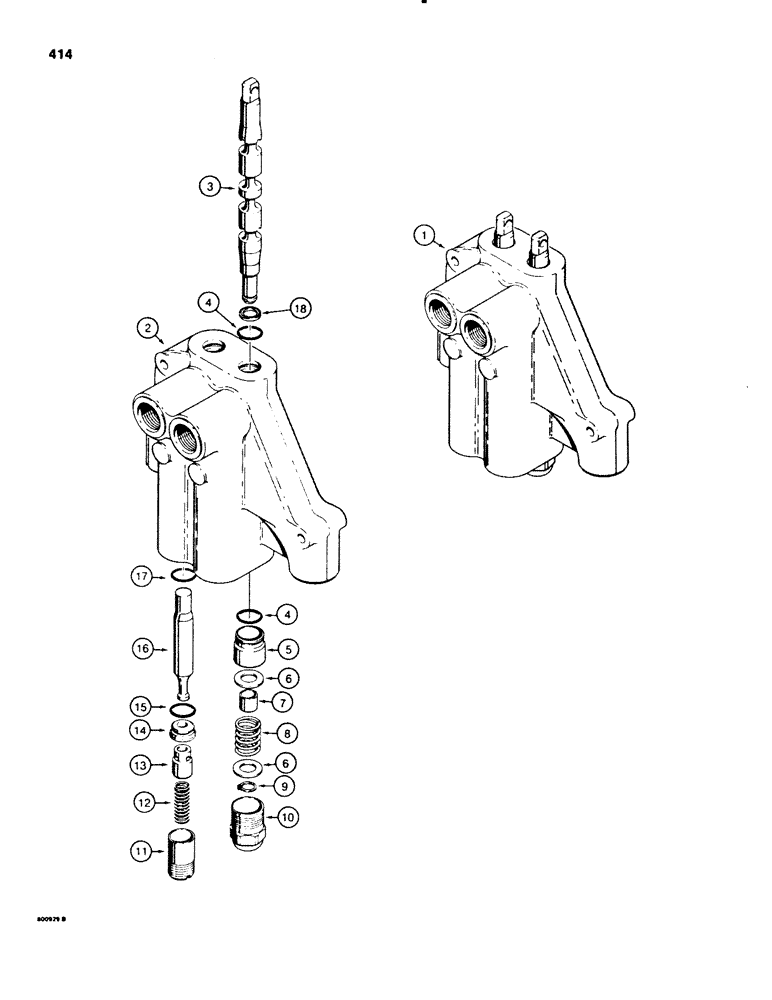

Запчасти Case 580E (414) - STABILIZER CONTROL VALVE (08) - HYDRAULICS

1

DR124856

VALVE

CONTROL VALVE ASSEMBLY, stabilizer, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

DC124856

CORE-VALVE HYD

NUMBER return, use this part number to return valve core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY, stabilizer, new, Cessna No. 39042 AAL, for service order D124856 valve

1шт.

In valves identified as Cessna No. 39042 AAL, the N8451 seat and N8452 plunger must be replaced at the same time.

1шт.

1

D124856

VALVE

CONTROL VALVE ASSEMBLY, stabilizer, new, Cessna No. 39042-AAQ, Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

2шт.

4

N8453

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O RING spool

4шт.

5

N8450

BUSHING

spool

2шт.

6

N6470

WASHER

spring retainer

4шт.

7

N8436

WASHER

SPACER split, spring

2шт.

8

D56445

SPRING

spool return

2шт.

9

A27020

RING

snap, washer

2шт.

10

F35196

CAP

spool end

2шт.

11

D59653

PLUG

spring retainer

2шт.

12

D56444

SPRING

poppet

2шт.

13

D59654

VALVE

POPPET control valve

2шт.

N8451

SEAT

ASSEMBLY, plunger, Includes: Ref. 14 and 15

2шт.

In valves identified as Cessna No. 39042 AAL, the N8451 seat and N8452 plunger must be replaced at the same time.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT plunger

1шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

O RING seat

1шт.

16

N8452

PLUNGER

control valve

2шт.

In valves identified as Cessna No. 39042 AAL, the N8451 seat and N8452 plunger must be replaced at the same time.

1шт.

17

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O RING plunger

2шт.

18

N8005

WIPER SEAL

WIPER spool, outer

2шт.
