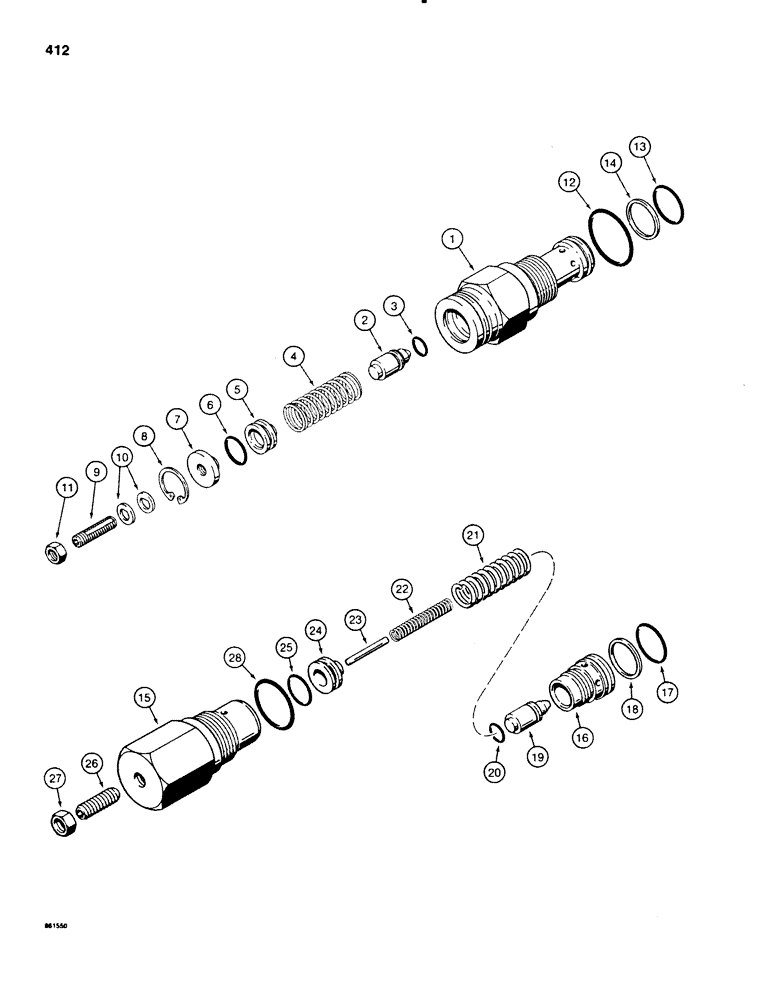

Запчасти Case 580E (412) - CASE LOADER CONTROL VALVE - TWO SPOOL, CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G106354

KIT

CIRCUIT RELIEF VALVE ASSEMBLY, bucket section, used in production, no longer available, Replaced by G107786 valve in production, order G109449 circuit relief valve kit for service, see below, Includes: Ref. 1 - 14

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

3

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

4

G105693

VALVE SPRING

SPRING circuit relief valve

1шт.

5

G33091

PISTON

circuit relief valve

1шт.

6

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O RING piston

1шт.

7

G33092

RETAINER

relief adjusting

1шт.

8

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

9

G102782

SET SCREW,1/4" - 20 x 1"

set, hex socket, 1/4" - 20 NC x 1"

1шт.

10

G102781

WASHER

special

2шт.

11

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING large

1шт.

13

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O RING small

1шт.

14

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O ring

1шт.

G107786

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE ASSEMBLY, bucket section, high pressure, Replaces G106354 valve in production, order G109449 kit for service, Includes: Ref. 15 - 28

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instrucitons sent with the repair valve.

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O RING circuit relief valve seat

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O ring

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

O RING poppet

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PIN relief stop, no longer used, not required

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O RING piston

1шт.

26

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, oval point, plated, 5/16" - 24 NF x 1"

1шт.

27

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING large, housing

1шт.

G109449

KIT

service for G107786, includes G109447 circuit relief valve, Refs. 15-28, and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instrucitons sent with the repair valve.

1шт.
