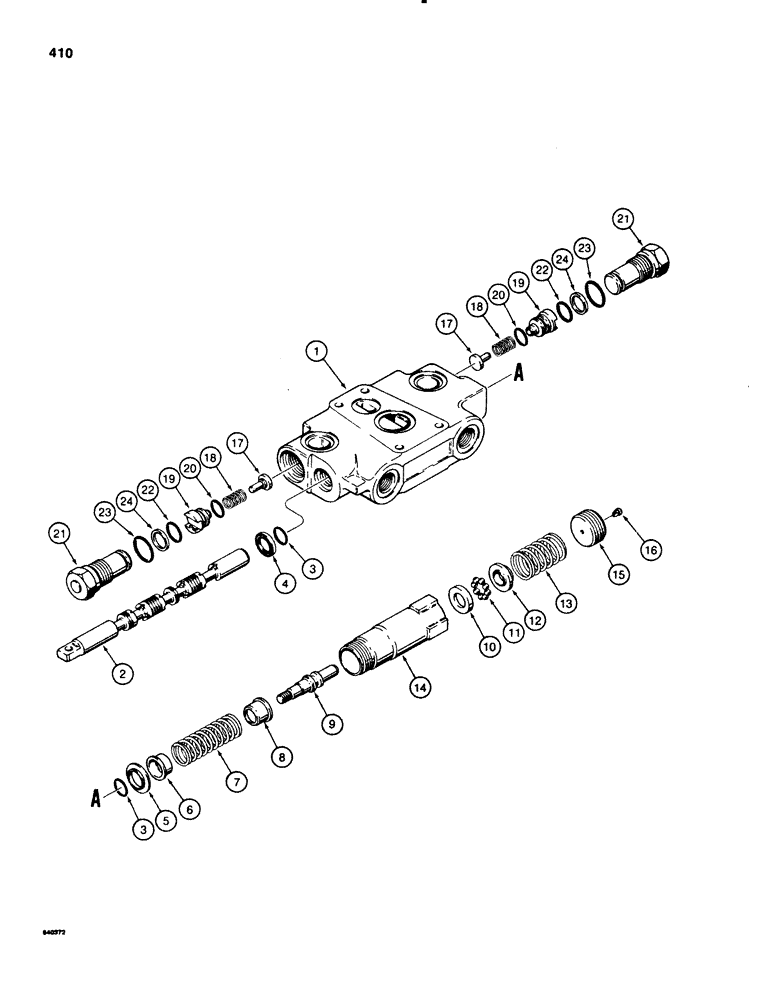

Запчасти Case 580E (410) - CASE LOADER CONTROL VALVE - TWO SPOOL, LIFT SECTION (08) - HYDRAULICS

G106336

VALVE, CHECK

SECTION ASSEMBLY, lift, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

G108461

O-RING

O RING spool and housing

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring, upper, small

1шт.

7

G106455

SPRING

centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

detent, ball retainer

1шт.

11

211-258

BALL

grade 50, chrome alloy steel, 9/32"

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

ball stop

1шт.

13

G109081

SPRING

detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

detent

1шт.

15

G106454

PLUG

detent housing

1шт.

16

G107780

VALVE, CHECK

VALVE check, detent plug

1шт.

17

G33081

VALVE POPPET

POPPET load check

2шт.

18

G33573

SPRING

load check

2шт.

19

G33084

PLUG

load check

2шт.

20

G33686

O-RING,0.07" Thk x 0.61" ID

O RING plug

2шт.

G33122

PLUG,ORB

ASSEMBLY, load check valve port, Includes: Ref. 21 - 24

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG load check valve port

1шт.

22

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O RING small

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING large

1шт.

24

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O ring

1шт.
