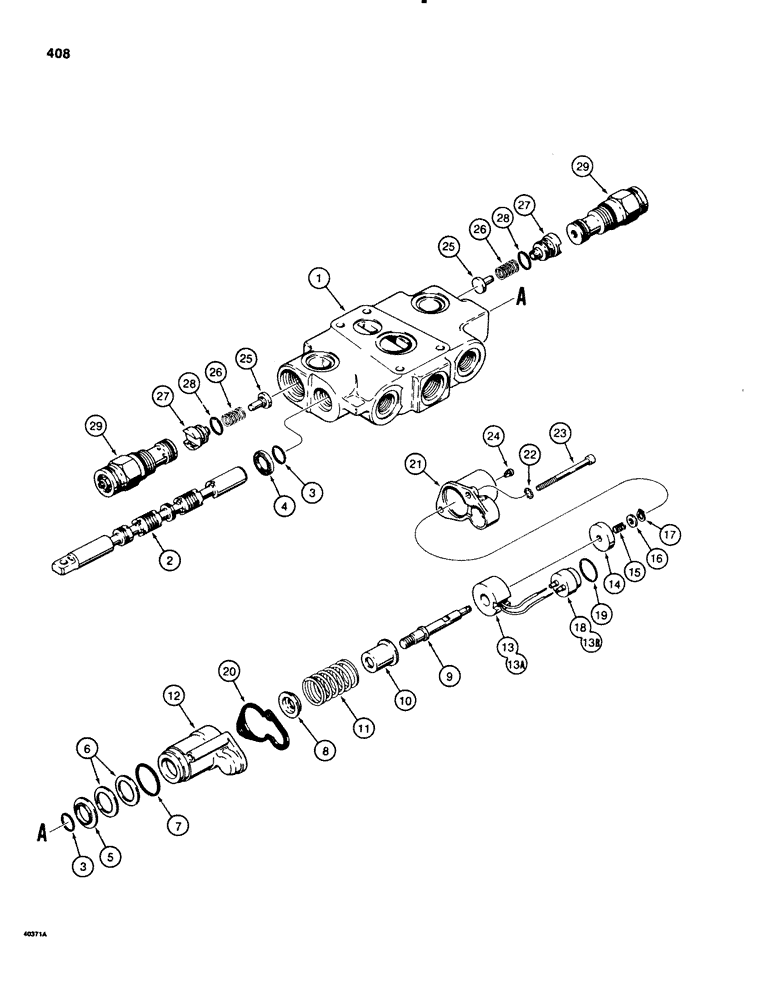

Запчасти Case 580E (408) - CASE LOADER CONTROL VALVE - TWO SPOOL, BUCKET SECTION WITH MAGNETIC DETENT (08) - HYDRAULICS

G106335

VALVE

SECTION ASSEMBLY, bucket, no longer available, order G109586 bucket section

1шт.

G109586

VALVE BLOCK

SECTION ASSEMBLY, bucket, Replaces G106335 bucket section, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

G108461

O-RING

O RING spool and housing

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O ring

1шт.

6

G106452

SPRING WASHER

SPRING belleville, washer

2шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

O RING retainer

1шт.

8

G106442

SEAT

RETAINER centering spring

1шт.

9

G107445

SHAFT

magnetic detent

1шт.

10

G106441

SEAT

centering spring

1шт.

11

G109302

SPRING

centering, spool

1шт.

12

G106423

HOUSING

magnetic detent

1шт.

13

G106447

MAGNET

COIL magnetic detent, no longer available, order G110079 magnetic detent coil assembly

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY, magnetic detent, Includes: Ref. 13A and 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

COIL magnetic detent

1шт.

13b

G106450

COIL

CONNECTOR coil

1шт.

14

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

15

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

16

A50778

WASHER

shaft

1шт.

17

A7111

SNAP RING,#25, Ext

Ring, Snap, , washer retaining #25, Ext

1шт.

18

G106450

COIL

CONNECTOR coil, used with G106447 magnetic detent coil, Ref. 13

1шт.

19

G106453

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

O RING connector

1шт.

20

G106443

GASKET

connector

1шт.

21

G106424

CAP

magnetic detent

1шт.

22

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT hex socket head, No. 10 - 24 NC x 2-3/4"

2шт.

24

G107780

VALVE, CHECK

VALVE check, magnetic detent

1шт.

25

G33081

VALVE POPPET

POPPET load check

2шт.

26

G33573

SPRING

load check

2шт.

27

G33084

PLUG

load check

2шт.

28

G33686

O-RING,0.07" Thk x 0.61" ID

O RING plug

2шт.

29

G106354

KIT

CIRCUIT RELIEF VALVE ASSEMBLY, See Figure 412, used in production, no longer available, Replaced by G107786 valve in production, order G109449 circuit relief valve kit for service, See Figure 412 for kit

2шт.

29

G107786

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE ASSEMBLY, See Figure 412, Replaces G106354 circuit relief valve in production, order G109449 kit for service, See Figure 412 for kit

2шт.
