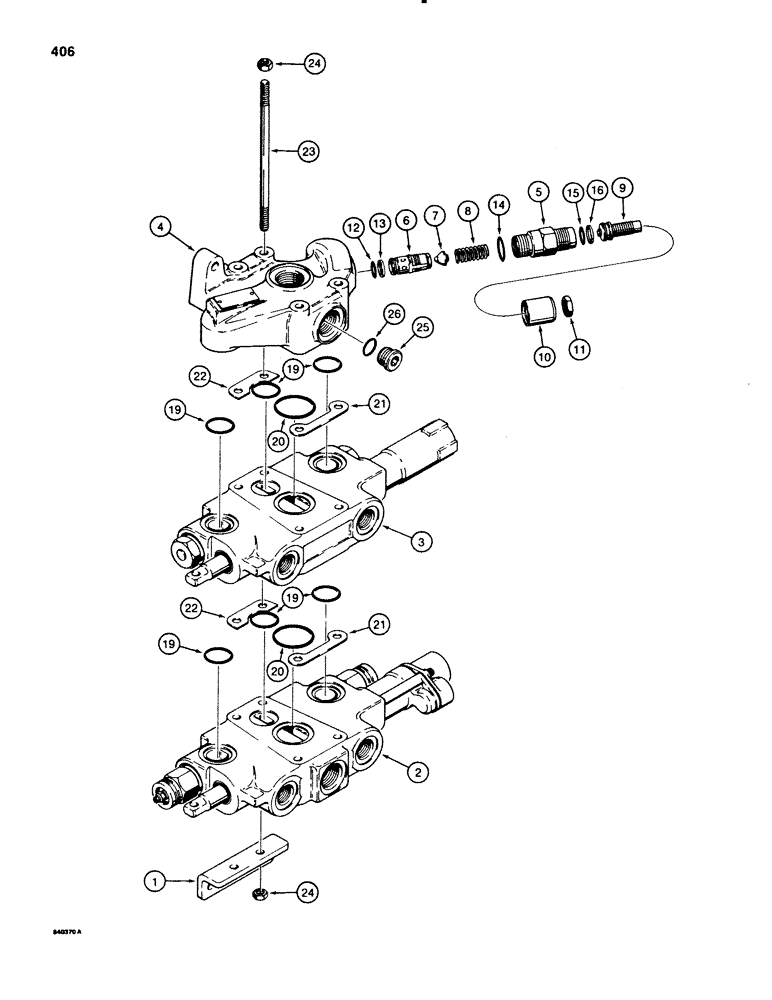

Запчасти Case 580E (406) - CASE LOADER CONTROL VALVE - TWO SPOOL (08) - HYDRAULICS

G106334

VALVE

CONTROL VALVE ASSEMBLY, loader, two spool, no longer available, order G110082 loader control valve

1шт.

G109580

VALVE

CONTROL VALVE ASSEMBLY, loader, two spool, replaces G106334 control valve, no longer available, order G110082 control valve

1шт.

G110082

VALVE

CONTROL VALVE ASSEMBLY, loader, two spool, Includes: Ref. 1 - 26

1шт.

1

G106405

BRACKET

mounting

1шт.

2

G106335

VALVE

BUCKET SECTION See Figure 408, no longer available, order G109586 section

1шт.

2

G109586

VALVE BLOCK

BUCKET SECTION See Figure 408, Replaces G106335 bucket section

1шт.

3

G106336

VALVE, CHECK

LIFT SECTION See Figure 410

1шт.

4

G106340

TUBE ASSY.

SECTION outlet with main relief valve

1шт.

G106406

VALVE, PRESSURE RELI

MAIN RELIEF VALVE ASSEMBLY, loader control valve, no longer available, order G110083 main relief valve, see below, Includes: Ref. 5 - 26

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING relief valve cartridge

1шт.

6

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY, relief valve, component parts not serviced separately

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET relief valve cartridge

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW adjusting, relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

11

NSS

NOT SOLD SEPARAT

NUT cap retaining

1шт.

G109402

SEAL

KIT, seal, relief valve assembly, no longer available, for service order G110098 seal kit and G110099 screen filter kit, see below, Includes: Ref. 12 - 26

1шт.

12

NSS

NOT SOLD SEPARAT

O RING cartridge, outer

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, cartridge, outer O ring

1шт.

14

NSS

NOT SOLD SEPARAT

O RING housing, large, outer

1шт.

15

NSS

NOT SOLD SEPARAT

O RING adjusting screw, inner

1шт.

16

NSS

NOT SOLD SEPARAT

RING backup, adjusting screw O ring

1шт.

17

NSS

NOT SOLD SEPARAT

FILTER inner end of cartridge, not shown

1шт.

The filter and snap ring included in this kit may be replaced without disassembling the cartridge.They do not have to be replaced unless system contamination is high.

1шт.

18

NSS

NOT SOLD SEPARAT

RING snap, filter retaining, not shown

1шт.

The filter and snap ring included in this kit may be replaced without disassembling the cartridge.They do not have to be replaced unless system contamination is high.

1шт.

18a

G110083

VALVE

MAIN RELIEF VALVE ASSEMBLY, component parts not serviced separately, for service order G110098 seal kit and G110099 screen filler kit, not shown

1шт.

19

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

O RING section ports, small

6шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

O RING section ports, large

2шт.

21

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

2шт.

22

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

2шт.

23

G106302

STUD

tie, 3/8" - 16 NC x 7"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Used with power beyond only, Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

G110098

KIT

seal, services loader control valve end of relief valve, includes, 2, O rings and, 1, backup ring whiich are not serviced separately

1шт.

G110099

SCREEN

KIT, filter screen, relief valve, includes filter screen, snap ring, and screen retainer which are not serviced separately

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
