(022) - A172256 AIR CLEANER, MODELS WITH TURBOCHARGED ENGINE

Запчасти Case 580E (022) - A172256 AIR CLEANER, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

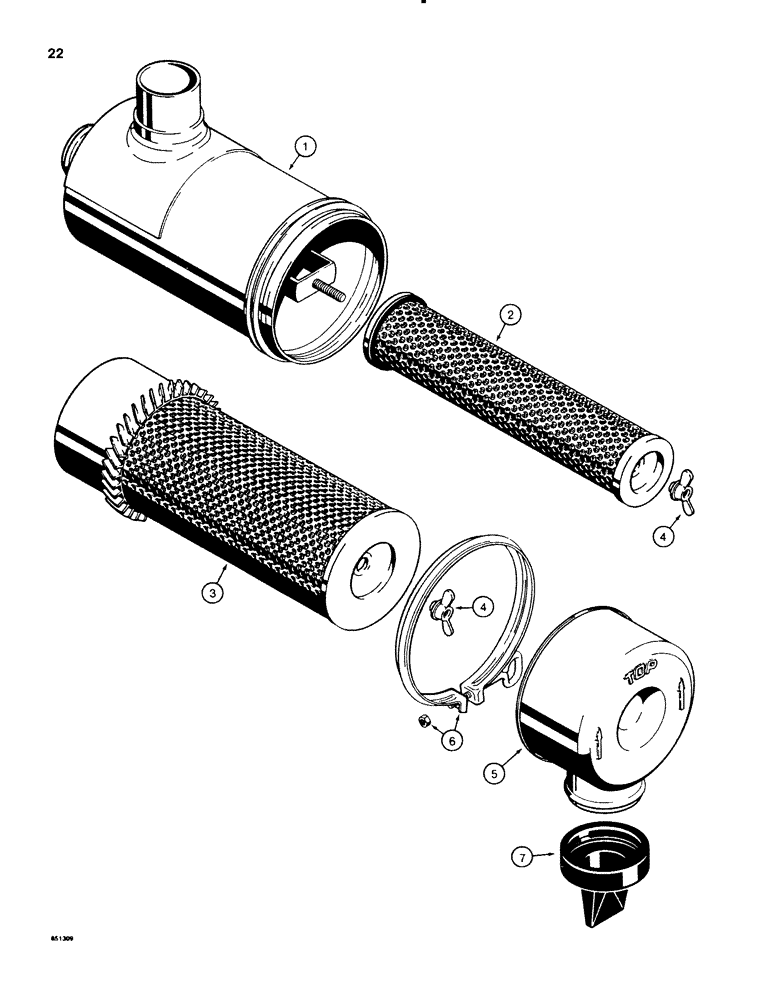

Схема запчастей Case 580E - (022) - A172256 AIR CLEANER, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE
3
4
5
4
2
1
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A172256

AIR CLEANER

ASSEMBLY, engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

A173291

AIR FILTER

ELEMENT secondary

1шт.

3

A173290

AIR FILTER

ELEMENT primary

1шт.

4

D78354

WING NUT

NUT wing, element

2шт.

5

NSS

NOT SOLD SEPARAT

COVER end

1шт.

6

F84999

CLAMP,168.28mm

, Serial Range: housing-cover

1шт.

7

S113982

CAP

VALVE dust, rubber

1шт.
