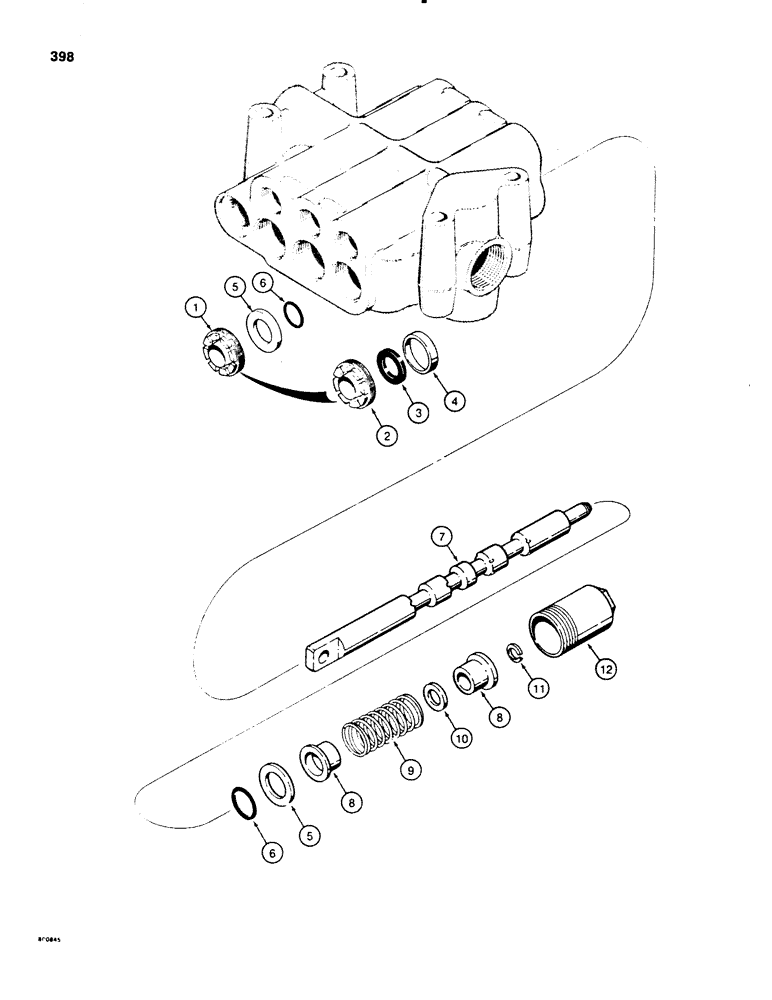

Запчасти Case 580E (398) - PARKER LOADER CONTROL VALVE, LOADER CLAM SPOOL (08) - HYDRAULICS

D37050

SPOOL

ASSEMBLY, loader clam, Includes: Ref. 1 through 12

1шт.

1

D80412

GLAND

AND WIPER ASSEMBLY, spool, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND spool

1шт.

3

A14527

SCRAPER

WIPER spool

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE gland

1шт.

5

A14535

RETAINER

seal

2шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O RING spool seal, control valve body

2шт.

7

NSS

NOT SOLD SEPARAT

SPOOL clam control

1шт.

8

A14533

BRONZE BUSHING

SEAT spring

2шт.

9

A14534

SPRING

centering, spool

1шт.

10

A25286

WASHER

special

1шт.

11

A27020

RING

snap, spring seat

1шт.

12

A14529

CAP

HOUSING spring

1шт.
