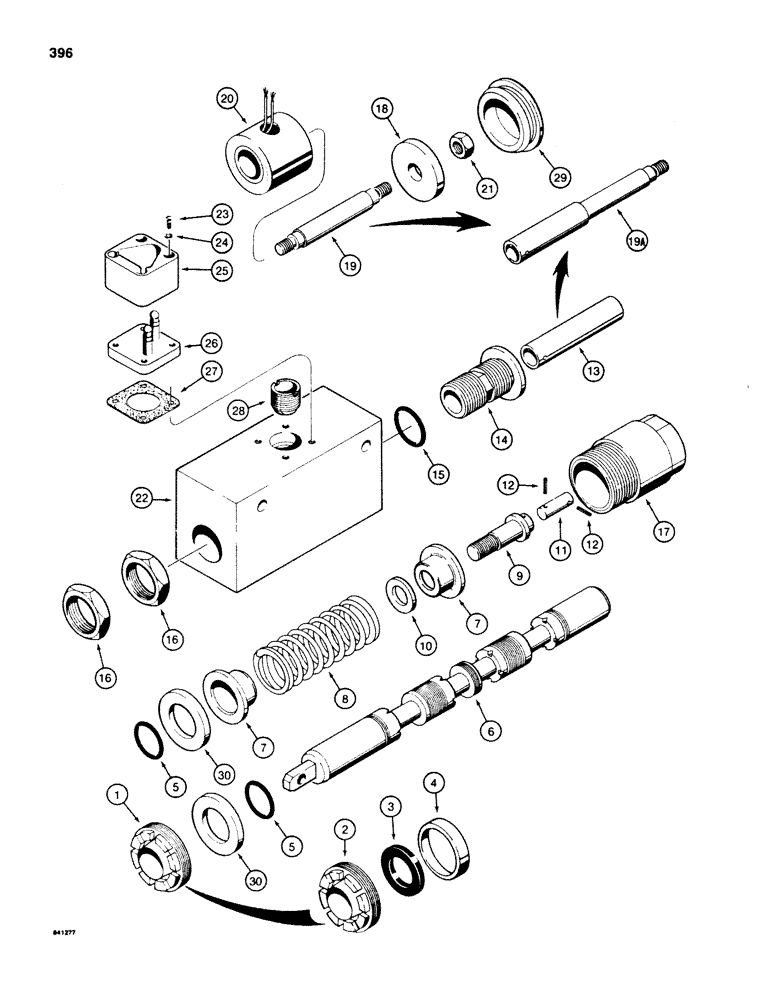

Запчасти Case 580E (396) - PARKER LOADER CONTROL VALVE, LOADER BUCKET SPOOL (08) - HYDRAULICS

N8524

SPOOL

ASSEMBLY, loader bucket, Includes: Ref. 1 through 30

1шт.

1

D80412

GLAND

AND WIPER ASSEMBLY, spool, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND spool

1шт.

3

A14527

SCRAPER

WIPER spool

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE gland

1шт.

5

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O RING spool seal, control valve body

2шт.

6

N8525

SPOOL

bucket control

1шт.

7

A14533

BRONZE BUSHING

SEAT spring

2шт.

8

A25285

SPRING

centering, spool

1шт.

9

L36048

PLUG

SCREW spool end

1шт.

10

A25286

WASHER

spacer

1шт.

11

D33858

LINK

spool detent

1шт.

12

138-2012

PIN,1/8" x 1/2", Coiled

2шт.

13

L36049

SPACER

detent link, used with Ref. 19, no longer available, replace this spacer and Ref. 19 with N9078 spacer, Ref. 19A

1шт.

14

L36046

CONNECTOR, ELEC

CONNECTOR spool end and detent

1шт.

15

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

O RING connector

1шт.

16

L36045

NUT

lock, 7/8" - 14 NF

2шт.

17

L36047

CAP

HOUSING spring

1шт.

18

N6008

WASHER

magnetic detent

1шт.

19

L36050

BUSHING

SPACER coil, rod, used with Ref. 13, no longer available, replace this spacer and Ref. 13 with N9078 spacer, Ref. 19A

1шт.

19a

N9078

SPACER

coil, rod, one piece, replaces two piece spacer, Ref. 13 and 19, on some models

1шт.

20

D78419

COIL

AND SLEEVE one piece design

1шт.

21

25-114

NUT,1/4"-28, G5

hex, 1/4" - 28 NF

1шт.

22

L36040

CAP

HOUSING magnetic detent

1шт.

23

187-1351

SELF-TAP SCREW,Cross Pan Hd, #4 x 1"

SCREW pan Phillips head, self tapping, plated, No. 4 40 NC x 1"

4шт.

24

192-53

LOCK WASHER,#4

WASHER, LOCK, #4

4шт.

25

N6046

COVER

connector

1шт.

26

N6642

CONNECTOR, ELEC

CONNECTOR two male bullets

1шт.

27

D80410

GASKET

connector

1шт.

28

L36042

TUBE

SCREW lock, hollow

1шт.

29

L36039

CAP

magnetic detent spool

1шт.

30

A14535

RETAINER

spool seal

2шт.
