(394) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL

Запчасти Case 580E (394) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (08) - HYDRAULICS

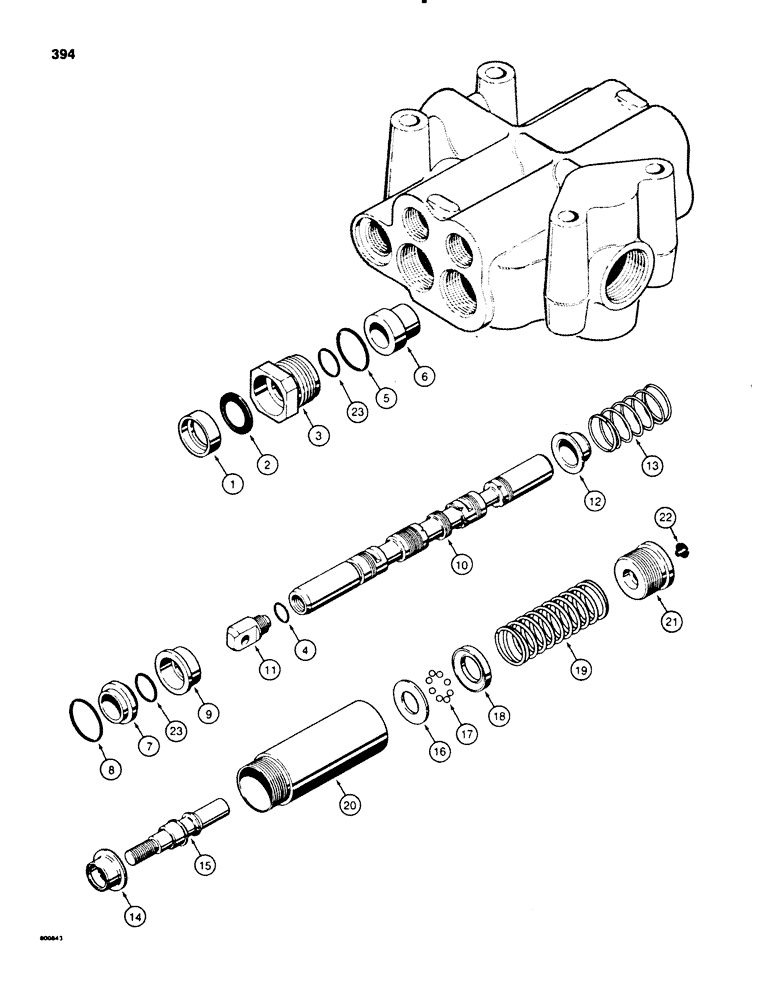

Схема запчастей Case 580E - (394) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (08) - HYDRAULICS
12
16
19
9
13
22
8
23
10
2
6
1
15
18
21
17
3
14
7
4
5
11
20
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

N6592

VALVE

SPOOL ASSEMBLY, loader lift, Includes: Ref. 1 - 23

1шт.

1

D37153

RETAINER

wiper ring

1шт.

2

A14527

SCRAPER

WIPER spool

1шт.

3

D37152

RETAINER

GLAND spool

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

O RING large, gland

1шт.

6

D37076

SLEEVE

spool, eye end

1шт.

7

D33857

RETAINER

O ring, inner

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

O RING spool

1шт.

9

D33856

RETAINER

O ring, outer

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL four position

1шт.

11

NSS

NOT SOLD SEPARAT

EYE spool

1шт.

12

A14533

BRONZE BUSHING

SEAT spring, upper

1шт.

13

N6013

SPRING

centering, spool

1шт.

14

A16881

SEAT

spring, lower

1шт.

15

N6014

STUD

detent

1шт.

16

L30455

WASHER

detent

1шт.

17

211-207

BALL

9/32", grade 25, chrome alloy steel, detent

8шт.

18

N6015

CAM

detent

1шт.

19

L30626

SPRING

detent

1шт.

20

L30454

CAP

HOUSING valve, detent

1шт.

21

N6643

PLUG

detent adjustment

1шт.

22

N6644

PLUG

check

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O RING spool seal, control valve body

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool eye, replaced: NSS

1шт.
