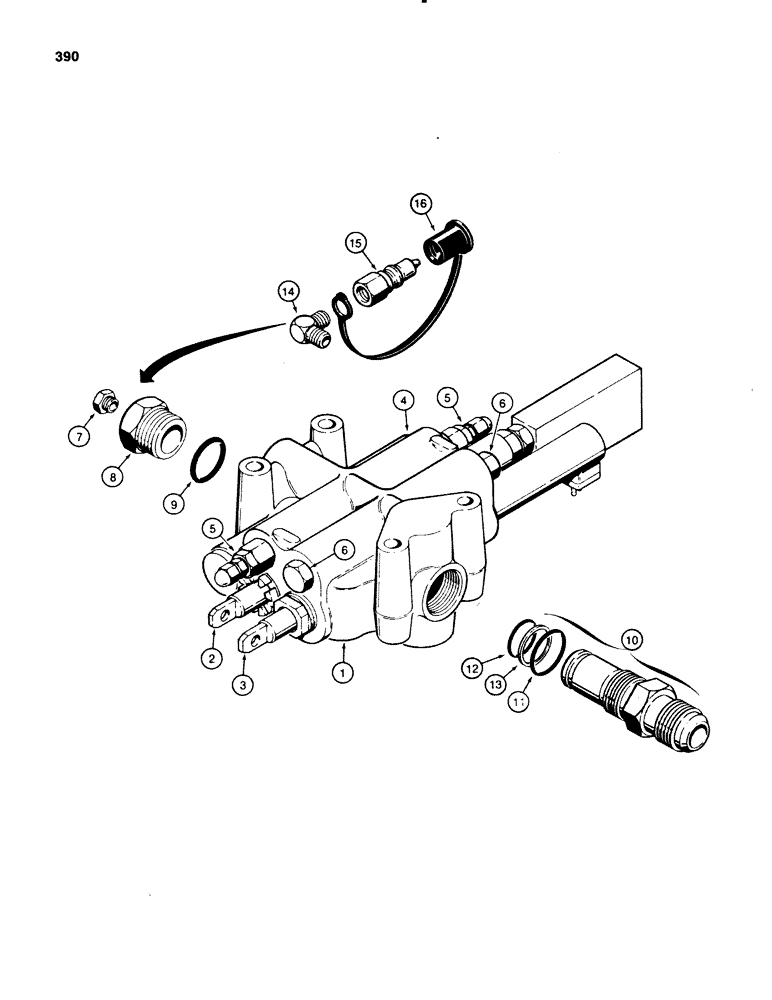

Запчасти Case 580E (390) - PARKER LOADER CONTROL VALVE - TWO SPOOL (08) - HYDRAULICS

1

D146465

VALVE

control, loader, two spool, Parker No. VDSP22DF75 Replaced: D122746, Includes: Ref. 2 - 9

1шт.

2

N8524

SPOOL

loader bucket, See Figure 396

1шт.

3

N6592

VALVE

SPOOL loader lift, See Figure 394

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE main relief, See Figure 400

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE circuit relief and load check, See Figure 402

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE load check, See Figure 404

2шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

pipe, hex head, 1/4" NPT, do not use plated plug at this location

1шт.

8

D38825

ADAPTER

PLUG control valve port, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING plug

1шт.

10

D92756

FITTING

SLEEVE power beyond, Includes: Ref. 11-13

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING large

1шт.

12

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

O RING small

1шт.

13

L31332

BACK-UP RING

backup, small O ring

1шт.

14

217-1225

ELBOW,90 Degree, 1/4"-18 Male

90 degree

1шт.

15

S206607

DISC

COUPLING male

1шт.

16

D123387

DUST CAP

COVER dust

1шт.
