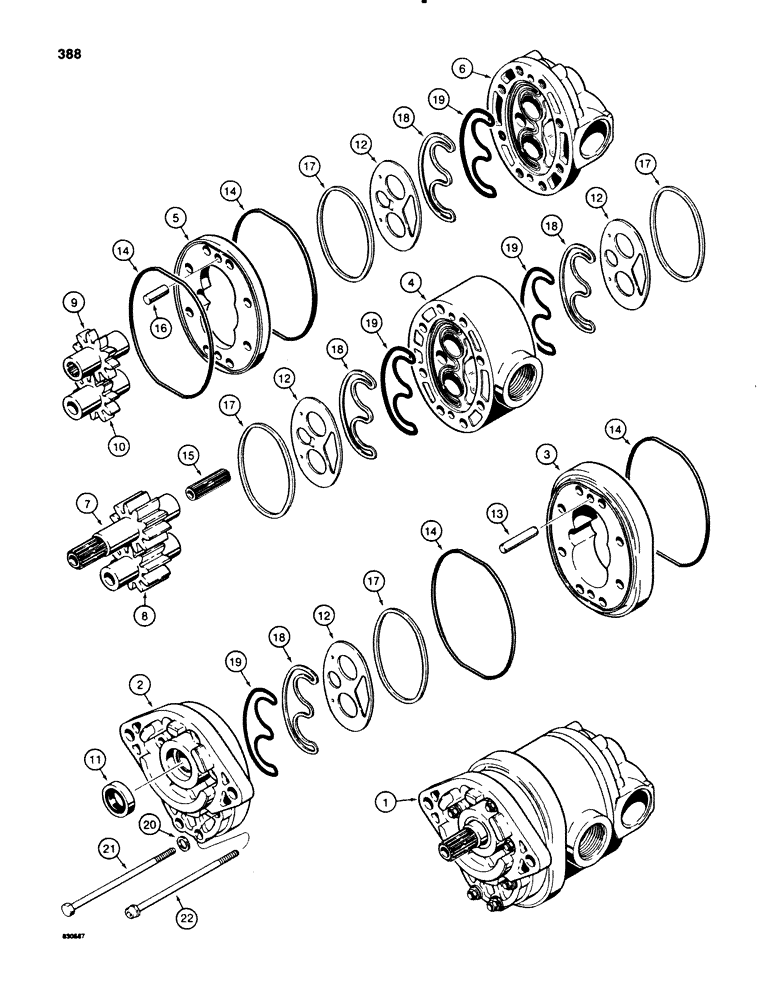

Запчасти Case 580E (388) - WEBSTER HYDRAULIC PUMP (08) - HYDRAULICS

1

D126580

PUMP

hydraulic, equipment and steering, Webster No. 152-45207-115, Includes: Ref. 2 - 22

1шт.

2

N6885

COVER

mounting, drive shaft end

1шт.

3

N6892

PLATE

HOUSING gear, drive shaft end

1шт.

4

N6887

PLATE

CARRIER bushing

1шт.

5

N6895

PLATE

HOUSING gear, port end

1шт.

6

N6886

COVER

port end

1шт.

7

N6888

GEAR

DRIVE GEAR drive, equipment hydraulic circuit

1шт.

8

N6890

GEAR

driven, equipment hydraulic circuit

1шт.

9

N6889

GEAR

drive, steering circuit

1шт.

10

N6891

GEAR

driven, steering circuit

1шт.

11

A23903

OIL SEAL

drive shaft

1шт.

12

A45046

WEAR PLATE

PLATE wear

4шт.

13

N6893

PIN

dowel, drive shaft end plate

2шт.

14

N6896

SEALING RING

ring

4шт.

15

N6899

COUPLING

drive and driven gear

1шт.

16

N6894

PIN

dowel, bearing, Serial Range: plate-cover

2шт.

17

D54169

SEALING RING

SEAL ring

4шт.

18

D54168

SEAL

SEAL backup

4шт.

19

D54167

SEAL

SEAL pre load

4шт.

20

A45050

WASHER

special

8шт.

21

26-692

CAPSCREW,Hex, 3/8" - 16 x 5 3/4", Gr 8

BOLT hex head, grade 8, 3/8" - 16 NC x 5-3/4"

6шт.

22

61-692

HEX SOC SCREW,3/8"-16 x 5 3/4"

BOLT hex socket head, 3/8" - 16 NC x 5-3/4"

2шт.
