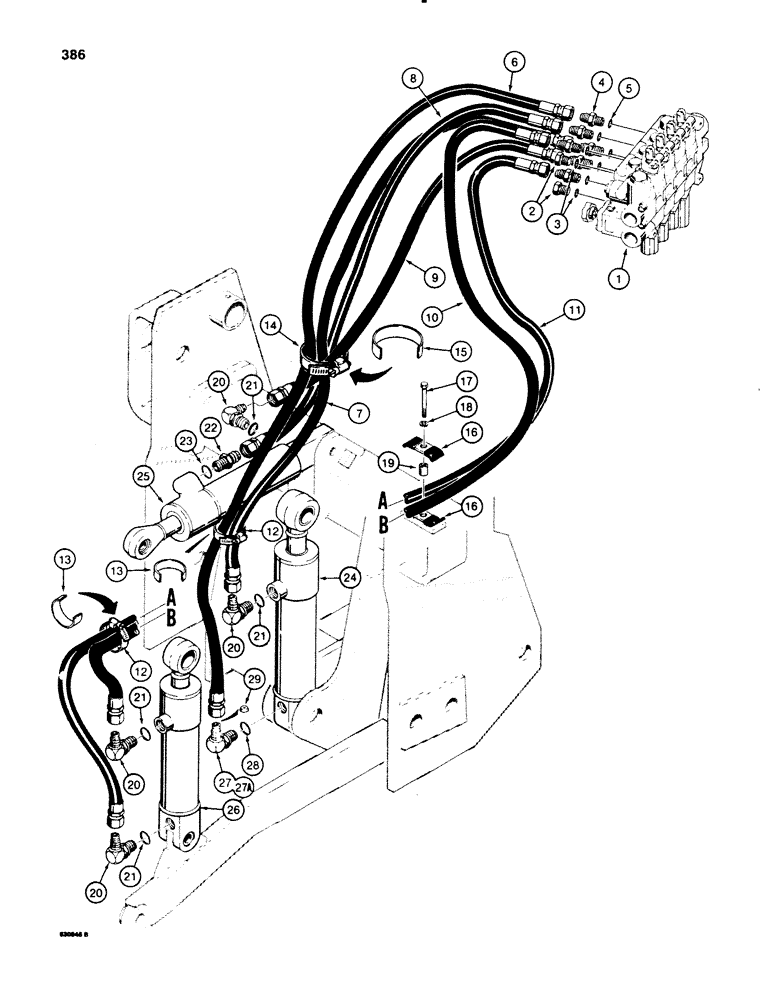

Запчасти Case 580E (386) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH HYDRAULIC HITCH (08) - HYDRAULICS

1

D124205

VALVE

control, hitch, four spool, See Figure 446

1шт.

2

214389

PLUG,3/4" - 16 ORB

Control valve ports, if used, Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Straight, Male, Control valve ports, Incl. Ref 5 3/4"-16, 37º x 3/4"-16, O-Ring

6шт.

6

D36129

HOSE ASSY.

HOSE, 57" (1448 mm) long, to closed end of lift cylinder

1шт.

7

D51688

HOSE

42" (1068 mm) long, to rod end of lift cylinder

1шт.

8

R32709

HOSE ASSY.

HOSE, 40" (1016 mm) long, to rod end of pitch cylinder

1шт.

9

R30836

HOSE

28" (711 mm) long, to closed end of pitch cylinder

1шт.

10

D51686

HOSE

54" (1372 mm) long, to rod end of tilt cylinder

1шт.

11

D51685

HOSE

66" (1676 mm) long, to closed end of tilt cylinder

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, small

2шт.

13

D95251

TUBE

GUARD hose protector

2шт.

14

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP hose, large

1шт.

15

D95252

TUBE

GUARD hose protector

1шт.

16

D33316

CLAMP

hose

2шт.

17

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

D34244

SPACER

hose clamp

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree, Includes: Ref. 21

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 23 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

24

G101189

CYLINDER ASSY.

CYLINDER lift, See Figure 482

1шт.

25

G33128

JACK BODY

CYLINDER pitch, See Figure 486

1шт.

26

G101188

JACK BODY

CYLINDER tilt, See Figure 484

1шт.

27

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, used with D71629 restrictor, no longer used at closed end port of lift cylinder, order D135096 restriction elbow

1шт.

27a

D135096

ELBOW

restriction, 90 degree, Replaces elbow and restrictor on some models, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING, 218-5121 or D135096 elbow

1шт.

29

D71629

FITTING

RESTRICTOR flow control, used with 218 5121 Ref. 27 elbow only

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
