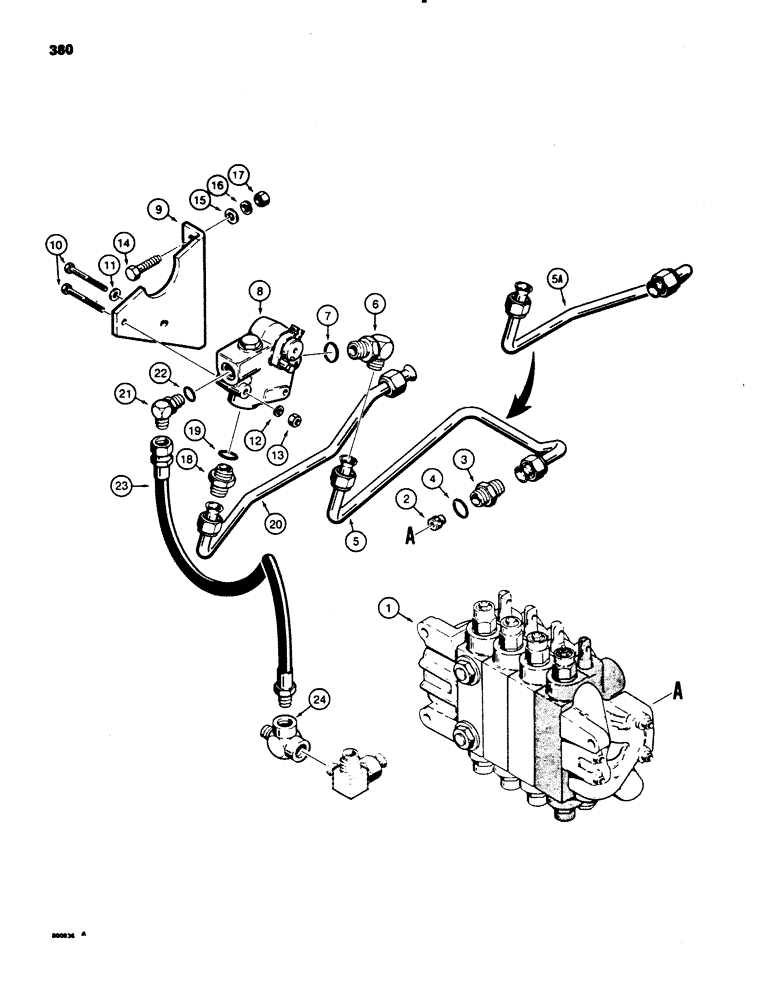

Запчасти Case 580E (380) - BACKHOE BOOM LOCK HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate, See Figure 344, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves See Figure 416 or 418

1шт.

2

D93207

FITTING

RESTRICTOR check, lower valve port

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

5

D88619

HYD TUBE,0.75" OD

TUBE from backhoe control valve to boom lock valve, models with foot swing

1шт.

5a

D91878

TUBE,0.75" OD

from backhoe control valve to boom lock valve, models with hand swing

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING elbow

1шт.

8

D88644

VALVE

boom lock, See Figure 442

1шт.

9

D89347

BRACKET

boom lock valve

1шт.

10

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

11

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

15

95-8

WASHER,1/2"

flat 1/2"

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

20

D88621

TUBE,0.75" OD

boom lock valve to boom cylinder

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, male, 90 degree, Includes: Ref. 22

1шт.

23

D89350

HOSE

21-5/8" (550 mm) long, boom lock valve return

1шт.

24

217-1065

TEE,3/4" - 14 Female x 3/4" - 14 Male Run

3/4" NPT, backhoe return lines, for related parts see Ref. 51 and 52 on Figure 344

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
