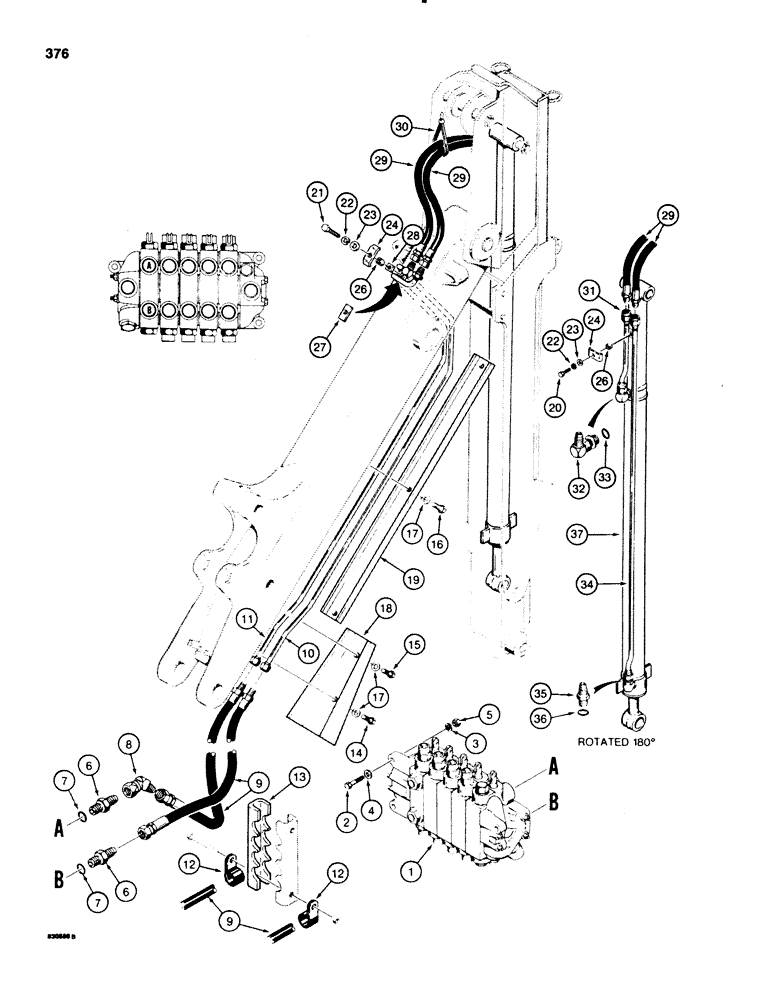

Запчасти Case 580E (376) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, MODELS WITH ONE BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate, See Figure 344

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

swivel, upper port, 45 degree

1шт.

9

D93649

HOSE,12.7mm ID x 1200mm L, SAE 100R2

From Control Valve 12.70 mm ID x 1200.00 mm, SAE 100R2

2шт.

10

D93646

HYD TUBE

TUBE right hand

1шт.

11

D93648

HYD TUBE

TUBE left hand

1шт.

12

S88820

CLAMP

p type, hose

2шт.

13

REF

INSTRUCTION

CLAMP hoses, see items 10 - 14 on Figure 368

1шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

16

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

3шт.

17

95-8

WASHER,1/2"

flat 1/2"

5шт.

18

D93678

GUARD

tube, lower

1шт.

19

D54137

GUARD

tube, upper

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1-2шт.

24

D42504

CLAMP

metal, tube, Replaces plastic clamp on some models

2шт.

25

RESERVED

1шт.

26

D76209

SPACER

used with metal tube clamp

2шт.

27

D76302

BLOCK

SPACER flat

1шт.

28

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

1шт.

29

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

40" (1016 mm), Serial Range: long,-cylinder

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

31

D52572

TUBE

to cylinder, closed end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, Incl. Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

34

D52574

TUBE

to cylinder, rod end

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING connector

1шт.

37

G101183

CYLINDER

dipper extension, See Figure 480

1шт.
