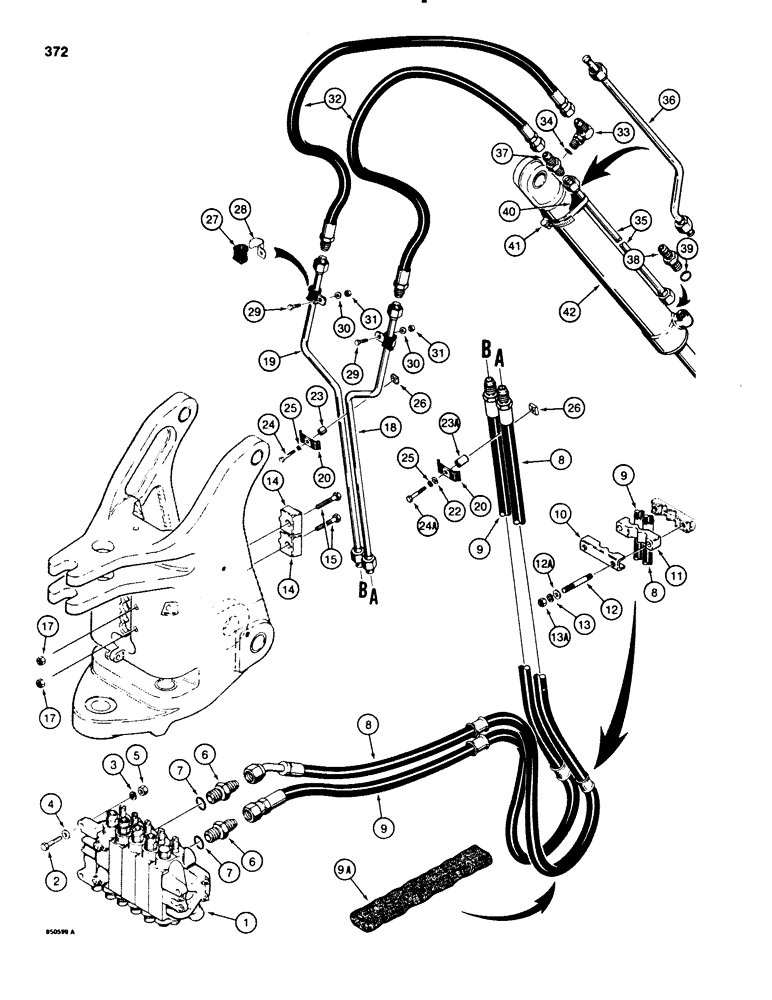

Запчасти Case 580E (372) - BACKHOE BUCKET CYL HYD CIRCUIT,MODEL W/EXTENDABLE DIPPER MODELS W/2BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for valve mounting plate See Figure 344, valve shown is for foot swing models, for correct valve section location with hand swing See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D133951

HOSE ASSY.,15.88mm ID x 2092mm L

HOSE, 81-7/8" (2079 mm) long, top port, second position from top in item 14 swing tower clamp

1шт.

9

D133953

HOSE ASSY.,15.88mm ID x 2068mm L

HOSE, 80-7/16" (2043 mm) long, bottom port, bottom position in item 14 swing tower clamp

1шт.

9a

D133294

HOSE PROTECTION

SLEEVE hose

1шт.

10

D124502

CLAMP

hose, attaches to clamp welded in boom

1шт.

11

D127521

SPACER

hose clamp

1шт.

12

D134182

STUD

1/2" - 13 NC x 3-1/2"

2шт.

12a

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13a

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

D127510

CLAMP

hose, in swing tower

2шт.

15

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

16

RESERVED

1шт.

17

131-667

NUT,7/16"-14, GB

NUT hex, self locking, plated, 7/16" - 14 NC, Replaces lock washer and hex nut on some models

2шт.

18

D77848

TUBE

right hand, upper

1шт.

19

D77846

TUBE

left hand, upper

1шт.

20

D40236

CLAMP

metal, Serial Range: tubes-boom

2шт.

21

RESERVED

1шт.

22

95-6

WASHER,3/8"

flat, 3/8"

1шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

tube clamp

1шт.

23a

D34089

SPACER

clamp

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

24a

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, welded to boom

2шт.

27

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube clamp

2шт.

28

D74192

CLAMP

tube

2шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

31

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

32

D52566

HOSE

70" (1778 mm) long, to bucket cylinder

2шт.

33

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree, at closed end port, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

35

D123159

TUBE

to rod end port, models with foot swing, see item 36

1шт.

36

D92158

HYD TUBE,19.05 mm OD x 92, 799 mm L

TUBE to rod end port, models with hand swing, see item 35

1шт.

37

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight, hose to tube

1шт.

38

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

40

D38648

BLOCK

SPACER tube, rubber

1шт.

41

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP tube

1шт.

42

REF

INSTRUCTION

CYLINDER bucket, See Figure 474

1шт.
