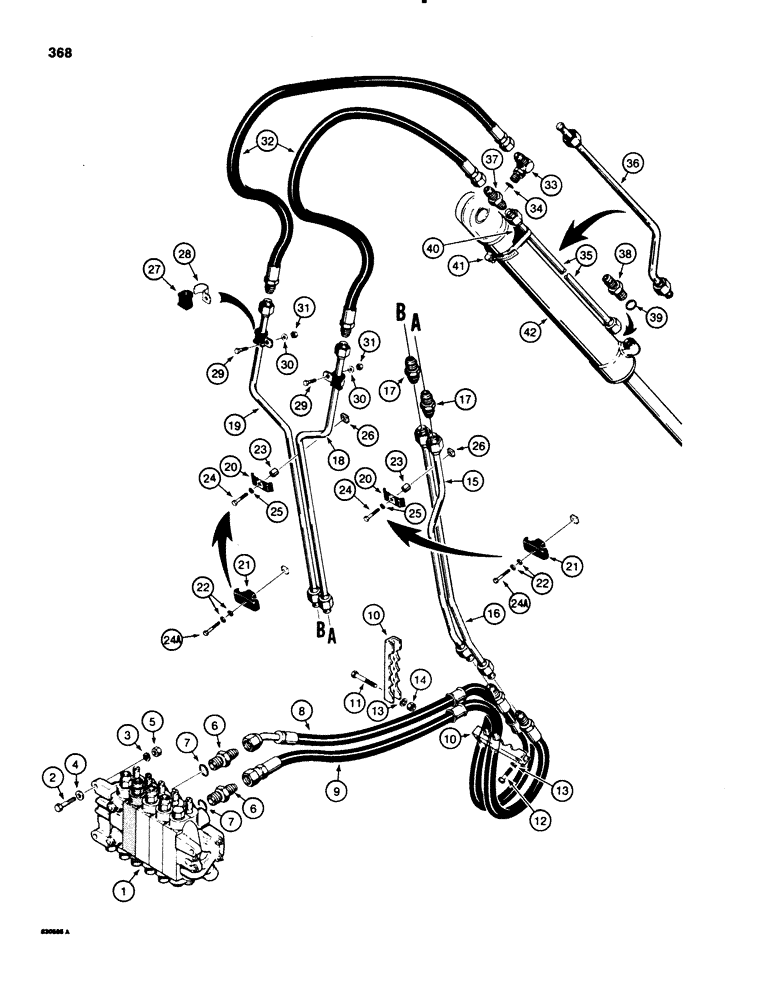

Запчасти Case 580E (368) - BACKHOE BUCKET CYL HYD CIRCUIT,MODEL W/EXTENDABLE DIPPER MODELS W/1BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for valve mounting plate See Figure 344, valve shown is for foot swing models, for correct valve section location with hand swing See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

top port, 50" (1270 mm) long

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

46-7/8" (1190 mm) long, bottom port

1шт.

10

D92721

CLAMP

hoses

2шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT hex socket head, 1/2" - 13 NC x 1-3/4"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

D123141

TUBE

from upper port

1шт.

16

D123143

TUBE

from lower port

1шт.

17

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight, tube to tube

2шт.

18

D123139

TUBE

right hand, upper

1шт.

19

D123145

TUBE

left hand, upper

1шт.

20

D40236

CLAMP

metal, tubes to boom, if used

2шт.

21

D124301

CLAMP,3/4" ID

plastic, tubes to boom, if used

2шт.

22

95-6

WASHER,3/8"

flat, , used with plastic tube clamp, if used 3/8"

4шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

used with metal tube clamp, if used

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

2шт.

24a

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, welded to boom

2шт.

27

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube clamp

2шт.

28

D74192

CLAMP

tube

2шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

31

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

32

D52566

HOSE

70" (1778 mm) long, to bucket cylinder

2шт.

33

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree, at closed end port, Includes: Ref. 34

1шт.

218 5123 elbow, Ref. 33, and 218 737 connector, Ref. 37, are reversed on models with hand swing

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

35

D123159

TUBE

to rod end port, models with foot swing, see Ref. 36

1шт.

36

D92158

HYD TUBE,19.05 mm OD x 92, 799 mm L

TUBE to rod end port, models with hand swing, see Ref. 35

1шт.

218 5123 elbow, Ref. 33, and 218 737 connector, Ref. 37, are reversed on models with hand swing

1шт.

37

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight, hose to tube

1шт.

218 5123 elbow, Ref. 33, and 218 737 connector, Ref. 37, are reversed on models with hand swing

1шт.

38

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

40

D38648

BLOCK

SPACER tube, rubber

1шт.

41

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP tube

1шт.

42

REF

INSTRUCTION

CYLINDER bucket, See Figure 474

1шт.
