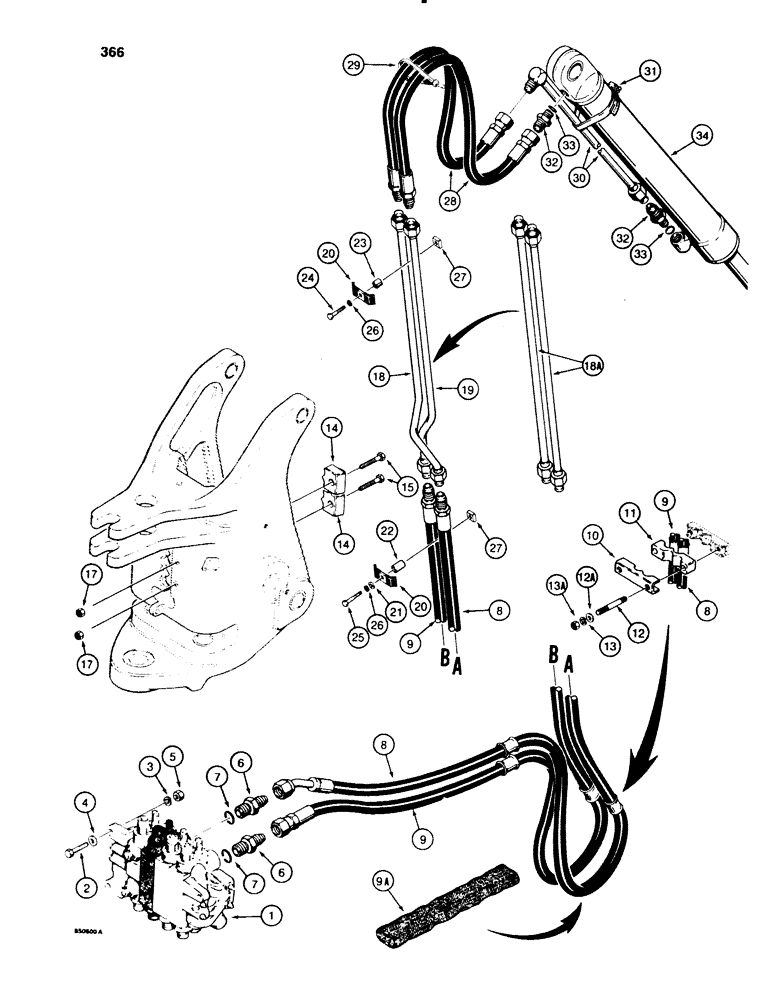

Запчасти Case 580E (366) - BACKHOE BUCKET CYL HYD CIRCUIT,MODEL W/O EXTENDABLE DIPPER MODEL W/2BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate See Figure 344, valve shown is for foot swing models without extendable dipper, for correct valve section location in optional valves See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D133951

HOSE ASSY.,15.88mm ID x 2092mm L

HOSE, 81-7/8" (2079 mm) long, top port, second position from top in

1шт.

item 14 swing tower clamp

1шт.

9

D133953

HOSE ASSY.,15.88mm ID x 2068mm L

HOSE, 80-7/16" (2043 mm) long, bottom port, bottom position in item

1шт.

14 swing tower clamp

1шт.

9a

D133294

HOSE PROTECTION

SLEEVE hose

1шт.

10

D124502

CLAMP

hose, attaches to clamp welded in boom

1шт.

11

D127521

SPACER

hose clamp

1шт.

12

D134182

STUD

1/2" - 13 NC x 3-1/2"

2шт.

12a

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13a

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

D127510

CLAMP

hose, in swing tower

2шт.

15

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

16

RESERVED

1шт.

17

131-667

NUT,7/16"-14, GB

NUT hex, self locking, plated, 7/16" - 14 NC, Replaces lock washer and

1шт.

hex nut on some models

2шт.

18

D133212

TUBE

top port to rod end of bucket cylinder, used on backhoes with foot swing

1шт.

18a

D131142

TUBE

to both ends of bucket cylinder, used on backhoes with hand swing

2шт.

19

D133214

TUBE

bottom port to closed end of bucket cylinder, used on backhoes

1шт.

with foot swing

1шт.

20

D40236

CLAMP

metal

2шт.

21

95-6

WASHER,3/8"

flat, 3/8"

1шт.

22

D34089

SPACER

hose clamp

1шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

tube clamp

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

25

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.

28

D50372

HOSE

34" (864 mm) long, to bucket cylinder

2шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

30

D58609

TUBE

to rod end of bucket cylinder

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube

1шт.

32

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

34

REF

INSTRUCTION

CYLINDER bucket, See Figure 474

1шт.
