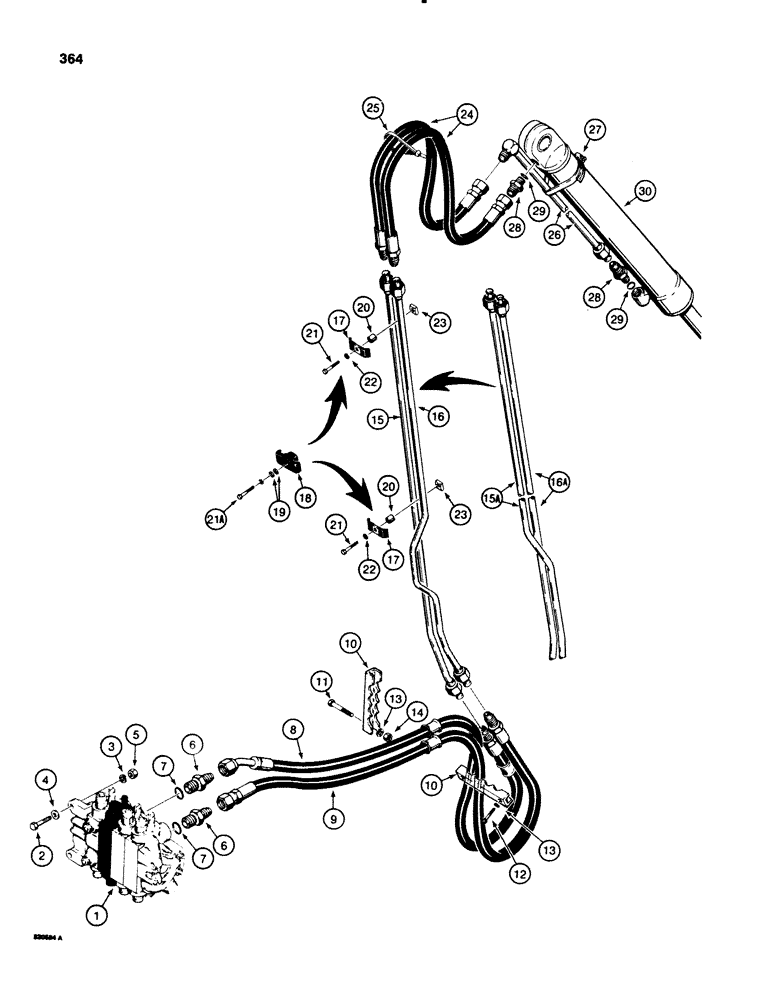

Запчасти Case 580E (364) - BACKHOE BUCKET CYL HYD CIRCUIT,MODEL W/O EXTENDABLE DIPPER MODEL W/1BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate See Figure 344, valve shown is for foot swing models without extendable dipper, for correct valve section location in optional valves See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

50" (1270 mm) long, top port

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

46-7/8" (1190 mm) long, bottom port

1шт.

10

D92721

CLAMP

hose

2шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT hex socket head, 1/2" - 13 NC x 1-3/4"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

D91204

HYD TUBE,19.05 mm OD x 1835, 90 mm L

TUBE top port to rod end of bucket cylinder, used on backhoes with foot swing

1шт.

15a

D94423

HYD TUBE,19.05 mm OD x 1865, 101 mm L

TUBE bottom port to rod end of bucket cylinder, used on backhoes with hand swing

1шт.

16

D91206

HYD TUBE,19.05 mm OD x 107, 1865 mm L

TUBE bottom port to closed end of bucket cylinder, used on backhoes

1шт.

with foot swing

1шт.

16a

D94421

HYD TUBE,19.05 mm OD x 1835, 112 mm L

TUBE top port to closed end of bucket cylinder, used on backhoes with hand swing

1шт.

17

D40236

CLAMP

metal, tubes to boom, if used

2шт.

18

D124301

CLAMP,3/4" ID

plastic, tubes to boom, if used

2шт.

19

95-6

WASHER,3/8"

flat, , used with plastic tube clamps, if used 3/8"

4шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

used with metal tube clamp, if used

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

2шт.

21a

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.

24

D50372

HOSE

34" (864 mm) long, to bucket cylinder

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

26

D58609

TUBE

to rod end of bucket cylinder

1шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

30

REF

INSTRUCTION

CYLINDER bucket, See Figure 474

1шт.
