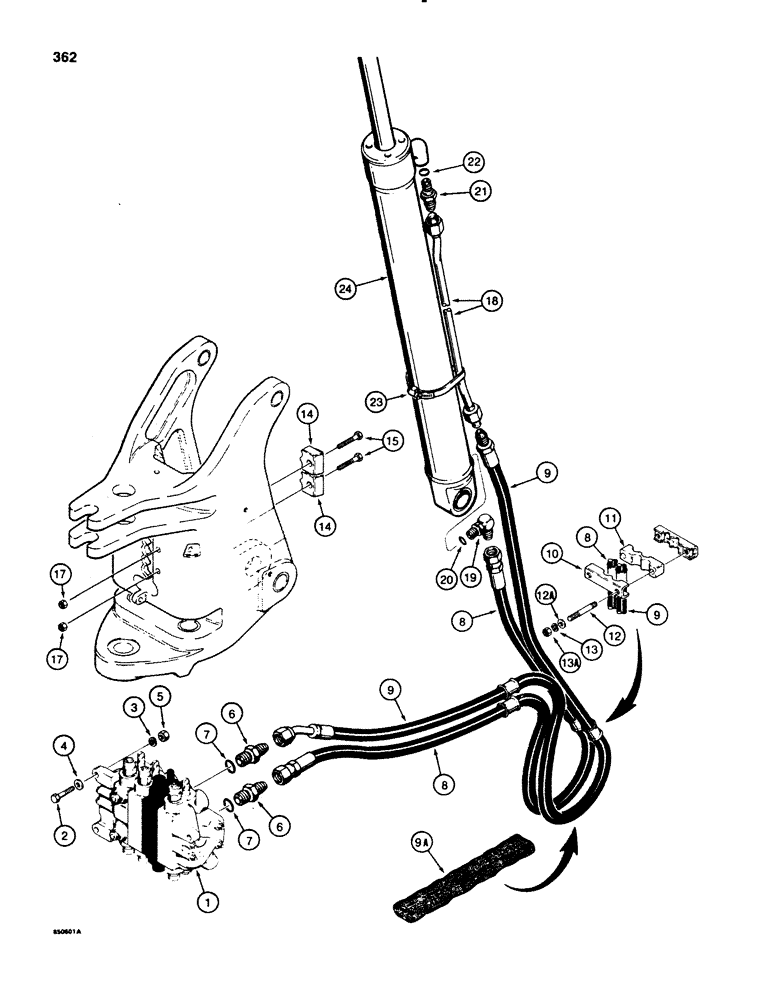

Запчасти Case 580E (362) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, MODELS WITH TWO BOOM MOUNTING PINS AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for valve mounting plate See Figure 344, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D133952

HOSE ASSY.,15.88mm ID x 1712mm L

HOSE, 66-5/8" (1693 mm) long, to closed end of dipper cylinder, third

1шт.

position from top in item 14 swing tower clamp

1шт.

9

D133950

HOSE ASSY.,15.88mm ID x 1870mm L

HOSE, 72-7/8" (1851 mm) long, to rod end of dipper cylinder, top position

1шт.

in item 14 swing tower clamp

1шт.

9a

D133294

HOSE PROTECTION

SLEEVE hose

1шт.

10

D124502

CLAMP

hoses, attaches to clamp welded in boom

1шт.

11

D127521

SPACER

hose clamp

1шт.

12

D134182

STUD

1/2" - 13 NC x 3 1/2"

2шт.

12a

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13a

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

D127510

CLAMP

hose, in swing tower

2шт.

15

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

16

RESERVED

1шт.

17

131-667

NUT,7/16"-14, GB

NUT hex, self locking, plated, 7/16" - 14 NC, Replaces lock washer and

1шт.

hex nut on some models

2шт.

18

D50379

TUBE

to rod end of cylinder

1шт.

19

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degee, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

21

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

23

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP cylinder tube

1шт.

24

REF

INSTRUCTION

CYLINDER dipper, See Figure 472

1шт.
