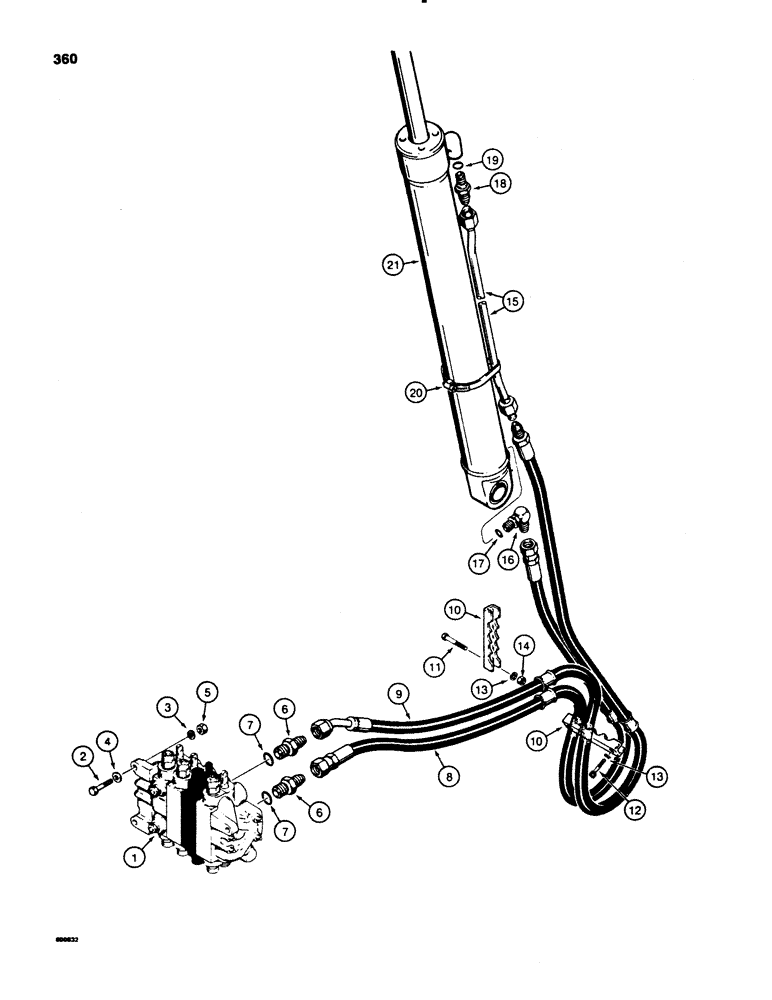

Запчасти Case 580E (360) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, MODELS WITH ONE BOOM MOUNTING PIN AT SWNG TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for valve mounting plate See Figure 344, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D88976

HOSE,15.88mm ID x 1820mm L, SAE 100R2

71-5/8" (1820 mm) long, to closed end of dipper cylinder

1шт.

9

D88975

HOSE,15.88mm ID x 2000mm L, SAE 100R2

78-3/4" (2000 mm) long, to rod end of dipper cylinder

1шт.

10

D92721

CLAMP

hoses

2шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT hex socket head, 1/2" - 13 NC x 1-3/4"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

D50379

TUBE

to rod end of cylinder

1шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degee, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP cylinder tube

1шт.

21

REF

INSTRUCTION

CYLINDER dipper, See Figure 472

1шт.
